MOBILE MODULE
The device supports 5G Sub-6Ghz SA 223 Mbps DL, 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL.

3GPP RELEASE
Release 17 RedCap.

ESIM
Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans. Feature availability varies by order code.

SIM SWITCH
Dual SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection. Feature availability varies by order code.

STATUS
IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC.

SMS
SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP.

USSD
Supports sending and reading Unstructured Supplementary Service Data messages.

BLOCK/ALLOW LIST
Operator block/allow list (by country or separate operators).

MULTIPLE PDN
Possibility to use different PDNs for multiple network access and services.

BAND MANAGEMENT
Band lock, Used band status display.

SIM IDLE PROTECTION SERVICE
Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked.

SIM PIN CODE MANAGEMENT
SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN.

APN
Auto APN.

BRIDGE
Direct connection (bridge) between mobile ISP and device on LAN.

PASSTHROUGH
Router assigns its mobile WAN IP address to another device on LAN.

WIRELESS
Wireless mode – 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA).
Wi-Fi security – WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF).
SSID/ESSID – SSID stealth mode and access control based on MAC address.
Wi-Fi users – Up to 100 simultaneous connections.
Wireless Connectivity Features – Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k).
Wireless MAC filter – Allowlist, blocklist.
Wireless QR code generator – Once scanned, a user will automatically enter your network without needing to input login information.
TravelMate – Forward Wi-Fi hotspot landing page to a subsequent connected device.

ETHERNET

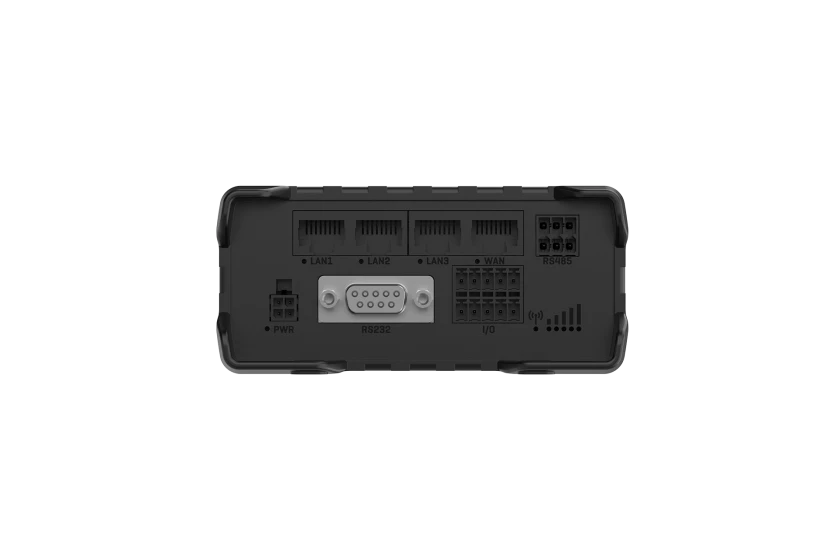

WAN – 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX.
LAN – 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX.

NETWORK
Routing – Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing.
Network protocols – TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on Lan (WOL), VXLAN.
VoIP passthrough support – H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets.
Connection monitoring – Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection.
Firewall – Port forward, traffic rules, custom rules.
Firewall status page – View all your Firewall statistics, rules, and rule counters.
Port management – View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on.
Network topology – Visual representation of your network, showing which devices are connected to which other devices.
DHCP – Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards.
QoS / Smart Queue Management (SQM) – Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e.
DDNS – Supported >77 service providers, others can be configured manually.
DNS over HTTPS – DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS.
Network backup – Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover.
Load balancing – Balance Internet traffic over multiple WAN connections.
Hotspot – Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes.
SSHFS – Possibility to mount remote file system via SSH protocol.
Port Mirroring – Mirroring network traffic on Ethernet ports for monitoring and analysis.

SECURITY
Authentication – Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator.
Firewall – Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64.
Attack prevention – DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks).
VLAN – Port and tag-based VLAN separation.
Mobile quota control – Mobile data limit, customizable period, start time, warning limit, phone number.
WEB filter – Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only.
Access control – Flexible access control of SSH, Web interface, CLI and Telnet.
Certificate Manager – Certificate creation tool allows to create CA, server, client, let’s encrypt, SCEP certificates.
802.1x – Port-based network access control server.

VPN
OpenVPN – Multiple clients and a server can run simultaneously, 27 encryption methods.
OpenVPN Encryption – DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256.
IPsec – XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16).
GRE – GRE tunnel, GRE tunnel over IPsec support.
PPTP, L2TP – Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support.
Stunnel – Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code.
DMVPN – Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support.
SSTP – SSTP client instance support.
ZeroTier – ZeroTier VPN client support.
WireGuard – WireGuard VPN client and server support.
Tinc – Tinc offers encryption, authentication and compression in its tunnels. Client and server support.

BACNET
Supported modes – Router.
Supported connection types – RS485, TCP.
Configuration options – Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device).

OPC UA
Supported modes – Client, Server.
Supported connection types – TCP.

MODBUS
Supported modes – Server, Client.
Supported connection types – RTU (RS232, RS485), TCP, USB.
Custom registers – MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality.
Supported data formats – 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII.

DATA TO SERVER
Protocol – HTTP(S), MQTT, Azure MQTT.
Data to server – Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature.
MQTT Gateway – Modbus MQTT Gateway allows sending commands and receiving data from MODBUS Server through MQTT broker.
DNP3 – Supported modes: TCP Master, DNP3 Outstation. Supported connection types: RS232, RS485, TCP, USB.
DLMS/COSEM – DLMS support, standard protocol for utility meter data exchange. Supported modes: Client. Supported connection types: RS232, RS485, TCP.
API – Teltonika Networks Web API (beta) support. Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data.

MONITORING & MANAGEMENT
WEB UI – HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status.
FOTA – Firmware update from server, automatic notification.
SSH – SSH (v1, v2).
SMS – SMS status, SMS configuration.
CALL – Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off.
EMAIL – Receive email message status alerts of various services.
TR-069 – OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem.
MQTT – MQTT Broker, MQTT publisher.
SNMP – SNMP (v1, v2, v3), SNMP Trap, Brute force protection.
JSON-RPC – Management API over HTTP/HTTPS.
RMS – Teltonika Remote Management System (RMS).
IoT Platforms – ThingWorx: Allows monitoring of WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type.
Cumulocity – Cloud of Things: Allows monitoring of Device Online Status, Mobile Network Type, Signal Quality.

SYSTEM CHARACTERISTICS
CPU – ARM Cortex-A7 Quad Core 1.2 GHz.
RAM – 512 MB DDR3.
FLASH – 512 MB.
File system – EXT4, JFFS2.
Real-time clock – RTC with battery backup.
Watchdog – Hardware and software watchdog timers.

FIRMWARE
Default configuration – Default settings and firmware provided by the manufacturer.
Upgrade – Firmware upgrade via Web UI, FOTA, CLI.

POWER
Input voltage – 9–36 VDC.
Power consumption – 12 W typical.

PHYSICAL SPECIFICATION
Dimensions – 185 x 110 x 40 mm.
Weight – 0.65 kg.
Mounting – DIN rail, wall mount.

OPERATING ENVIRONMENT
Temperature – -40 °C to +70 °C.
Humidity – 5% to 95% non-condensing.

REGULATORY & TYPE APPROVALS
EMC – EN 55032:2015, EN 55035:2017, EN 61000-6-2:2019.
RF – ETSI EN 301 511, EN 301 489-1/-52.

SAFETY
Standards
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020
CB: IEC 62368-1:2018
RCM: AS/NZS 62368.1:2022
