MOBILE MODULE
The device supports 5G Sub-6GHz SA with download speeds of 2 Gbps DL and upload speeds of 1 Gbps UL, and NSA with 2.6 Gbps DL and 650 Mbps UL. 4G LTE Cat 12 provides 600 Mbps downlink and Cat 13 up to 150 Mbps uplink. 3G connectivity offers 42.2 Mbps downlink and 11 Mbps uplink.

3GPP RELEASE
Release 15.

SIM SWITCH
Supports 2 SIM cards with automatic switching for weak signal, data limit, SMS limit, roaming, no network, network denied, data connection failure, and SIM idle protection.

STATUS
Includes IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP), data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC.

SMS
Supports SMS status, configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, and SMPP.

USSD
Supports sending and reading USSD messages.

BLOCK/ALLOW LIST
Operator block/allow list by country or individual operators.

BAND MANAGEMENT
Includes band lock and used band status display.

SIM IDLE PROTECTION SERVICE
Allows periodic switch to unused SIM to prevent SIM blockage.

SIM PIN CODE MANAGEMENT
Enables setting, changing, or disabling SIM PIN.

APN
Supports Auto APN.

BRIDGE
Direct connection between mobile ISP and device LAN.

PASSTHROUGH
Router assigns its mobile WAN IP to another device on LAN.

WIRELESS

Wireless Mode
Supports 802.11b/g/n/ac Wave 2 (Wi-Fi 5) up to 867 Mbps, 802.11r fast transition, AP, STA.

Wi-Fi Security
Supports WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher, client separation, EAP-TLS with PKCS#12, disable auto-reconnect, 802.11w PMF.

SSID/ESSID
Supports stealth mode and MAC-based access control.

Wi-Fi Users
Up to 150 simultaneous connections.

Wireless Connectivity Features
Supports mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition (802.11v), radio resource measurement (802.11k).

Wireless MAC Filter
Allowlist and blocklist.

Wireless QR Code Generator
Auto-connect via QR scan.

TravelMate
Forwards Wi-Fi hotspot landing page to next connected device.

ETHERNET

WAN
1 x WAN port, 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX.

LAN
4 x LAN ports, 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX.

NETWORK

Routing
Static and dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based routing.

Network Protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL), VXLAN.

VoIP Passthrough
H.323 and SIP-ALG NAT helpers.

Connection Monitoring
Ping/Wget Reboot, Periodic Reboot, LCP and ICMP link inspection.

Firewall
Port forward, traffic rules, custom rules, TTL target customization.

Firewall Status Page
View firewall statistics, rules, and counters.

Port Management
View/configure ports, enable/disable, adjust speed, manage auto-configuration.

Network Topology
Visual representation of connected devices.

DHCP
Static/dynamic IP, DHCP relay, server config, status, static leases with MAC wildcards.

QoS / SQM
Traffic priority by source/destination, service, protocol, port, WMM, 802.11e.

DDNS
Supports >77 providers, manual configuration possible.

DNS Over HTTPS
Secure DNS over HTTPS.

Network Backup
Wi-Fi WAN, Mobile, VRRP, Wired automatic failover.

Load Balancing
Distributes internet traffic across multiple WAN connections.

Hotspot
Captive portal, Radius server, MAC/SMS authentication, SSO, landing pages, walled garden, scripts, user groups, 9 themes, customizable themes.

SSHFS
Mount remote filesystem via SSH.

VRF Support
Supports virtual routing and forwarding.

TRAFFIC MANAGEMENT
Real-time monitoring, signal charts, traffic history.

SECURITY

Authentication
Pre-shared key, digital certificates, X.509, TACACS+, RADIUS, IP/login blocking, time-based login blocking, random password generator.

Firewall
Preconfigured rules via WebUI, unlimited CLI configuration, DMZ, NAT, NAT-T, NAT64.

Attack Prevention
DDOS and port scan prevention.

VLAN
Port/tag-based separation.

Mobile Quota Control
Mobile data limits, customizable period, warning alerts.

WEB Filter
Blacklist/Whitelist support.

Access Control
SSH, Web UI, CLI, Telnet flexible access.

Certificate Manager
Create CA, server, client, Let’s Encrypt, SCEP certificates.

802.1x
Port-based network access control.

VPN
OpenVPN, IPsec, GRE, PPTP/L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale support.

OPC UA / MODBUS / DLMS / API
Client/server support, TCP/USB connections, custom registers, data extraction, Teltonika Web API (beta).

MONITORING & MANAGEMENT
WEB UI, FOTA, SSH, SMS/Call, TR-069, MQTT, SNMP, JSON-RPC, MODBUS TCP, RMS, IoT platforms (ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core).

SYSTEM CHARACTERISTICS
CPU: MediaTek dual-core 880 MHz, MIPS1004Kc. RAM: 256 MB DDR3. Flash: 16 MB NOR, 256 MB NAND.

FIRMWARE / CONFIGURATION
WEB UI, FOTA, RMS, configuration backup, factory reset, RutOS OS, SDK, Busybox, Lua, C/C++, Package Manager.

USB
USB 2.0, Samba share, USB-to-serial, external devices, storage formats FAT/FAT32/exFAT/NTFS/ext2/3/4.

INPUT / OUTPUT
1 x Digital Input, 1 x Digital Output, event triggering via Email, RMS, SMS, I/O juggler.

POWER
4-pin DC 9–50 VDC, reverse polarity and surge protection, PoE passive 9–50 VDC, idle <5 W, max <18 W.

PHYSICAL INTERFACES

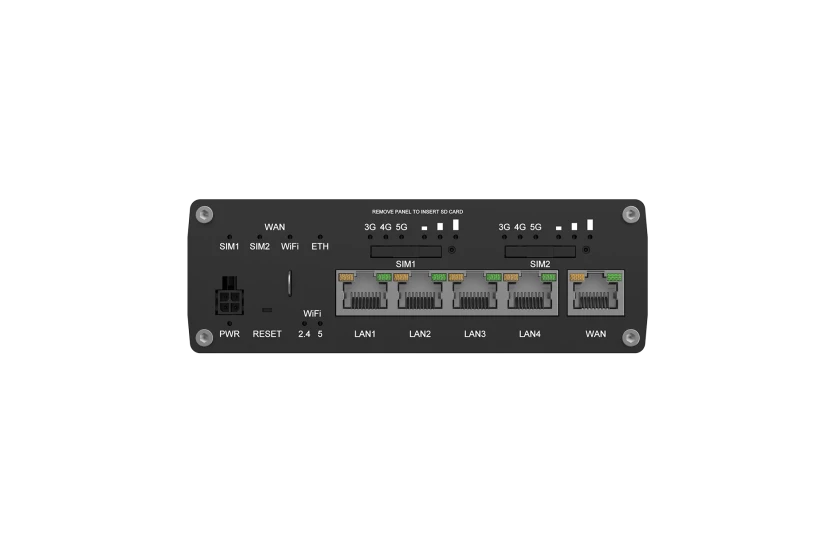

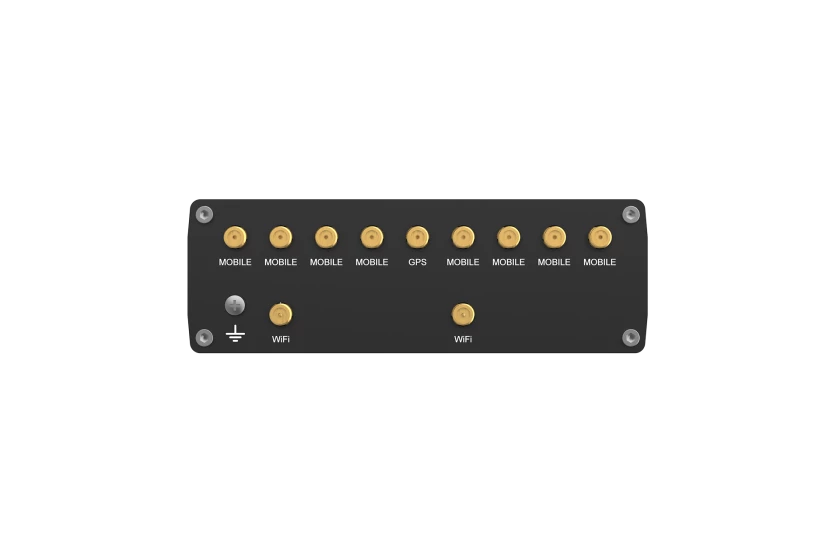

5 x RJ45 Ethernet, 1 x USB A, 2 SIM slots, 4-pin power, 4 x SMA Mobile, 2 x RP-SMA Wi-Fi.

PHYSICAL SPECIFICATION
Aluminium housing, 132 x 44.2 x 95 mm, 525 g, mounting: DIN rail, wall, flat surface.

OPERATING ENVIRONMENT
Temperature -40 °C to 75 °C, humidity 10–90%, IP30 ingress.

REGULATORY & TYPE APPROVALS
CE, UKCA, EAC, UCRF, RCM, WEEE, CB, UN ECE R10 (E-mark).

EMC EMISSIONS & IMMUNITY
EN 55032, EN 55035, EN 61000-3-2/3, EN 301 489 series, AS/NZS CISPR 32, ESD, Radiated Immunity, EFT, Surge, CS, DIP, RF compliance.

RF
EN 300 328, EN 301 893, EN 300 440, EN 301 908 series, AS/NZS 4268, AS/CA S042 series, FCC Part 22.

SAFETY
EN IEC 62311:2020, EN IEC 62368-1:2020+A11:2020, AS/NZS 2772.2:2016+A1:2018.
