RUTM54

MOBILE MODULE
The device supports 5G Sub-6Ghz SA/NSA 2.5/3.4Gbps DL (4×4 MIMO), 900/550 Mbps UL (2×2); 4G LTE – LTE Cat 19 1.6Gbps DL, LTE Cat 18 211Mbps UL; 3G – 42 Mbps DL, 5.7Mbps UL.

3GPP RELEASE
Release 16.

ESIM
Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans.

SIM SWITCH
Supports 2 SIM cards with auto-switch cases for weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection.

STATUS AND MONITORING
Status reporting includes IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC.

SMS
SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP.

USSD
Supports sending and reading Unstructured Supplementary Service Data messages.

BLOCK / ALLOW LIST
Operator block/allow list by country or individual operators.

MULTIPLE PDN
Possibility to use different PDNs for multiple network access and services.

BAND MANAGEMENT
Band lock, used band status display.

SIM IDLE PROTECTION SERVICE
Enables periodic switch to the unused SIM card to establish a data connection and prevent SIM blocking.

SIM PIN CODE MANAGEMENT
Allows setting, changing, or disabling the SIM card’s PIN.

APN
Auto APN.

BRIDGE
Direct connection (bridge) between mobile ISP and device on LAN.

PASSTHROUGH
Router assigns its mobile WAN IP address to another device on LAN.

FRAMED ROUTING
Support for an IP network behind 5G UE.

WIRELESS
Wireless mode includes 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA).

WI-FI SECURITY
WPA2-Enterprise – PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF).

SSID / ESSID
SSID stealth mode and access control based on MAC address.

WI-FI USERS
Up to 150 simultaneous connections.

WIRELESS CONNECTIVITY FEATURES
Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k).

WIRELESS MAC FILTER
Allowlist, blocklist.

WIRELESS QR CODE GENERATOR
Once scanned, a user will automatically enter your network without inputting login information.

TRAVELMATE
Forward Wi-Fi hotspot landing page to a subsequently connected device.

ETHERNET
WAN: 1 x WAN port 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, 802.3az, supports auto MDI/MDIX crossover.
LAN: 4 x LAN ports, 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, 802.3az, supports auto MDI/MDIX crossover.

NETWORK
Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing.
Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN.
VoIP passthrough: H.323 and SIP-alg protocol NAT helpers.
Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP link inspection.

FIREWALL
Port forward, traffic rules, custom rules, TTL target customization.

FIREWALL STATUS PAGE
View all firewall statistics, rules, and rule counters.

PORT MANAGEMENT
View device ports, enable/disable, change transmission speed, auto-configuration options.

NETWORK TOPOLOGY
Visual representation of connected devices.

DHCP
Static/dynamic IP allocation, DHCP relay, server configuration, status, static leases: MAC with wildcards.

QOS / SMART QUEUE MANAGEMENT (SQM)
Traffic priority queuing by source/destination, service, protocol, or port; WMM, 802.11e.

DDNS
Supported by 77+ service providers; others configurable manually.

DNS OVER HTTPS
DNS over HTTPS proxy for secure DNS resolution.

NETWORK BACKUP
Wi-Fi WAN, Mobile, VRRP, Wired options with automatic failover.

LOAD BALANCING
Balance Internet traffic over multiple WAN connections.

HOTSPOT
Captive portal, internal/external Radius server, MAC authentication, SMS authorization, SSO, landing pages, walled garden, user scripts, URL parameters, user groups, individual/group limitations, user management, 9 default customizable themes, optional custom themes upload/download.

SSHFS
Mount remote file system via SSH.

VRF SUPPORT
Initial virtual routing and forwarding (VRF) support.

TRAFFIC MANAGEMENT
Real-time monitoring, wireless signal charts, traffic usage history.

SECURITY
Authentication: Pre-shared key, digital certificates, X.509, TACACS+, internal/external RADIUS, IP/login attempts block, time-based login blocking, built-in random password generator.
Firewall: Preconfigured rules via WebUI, unlimited rules via CLI, DMZ, NAT, NAT-T, NAT64.
Attack prevention: DDOS (SYN flood, SSH, HTTP/HTTPS), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL, FIN scan).
VLAN: Port and tag-based separation.
Mobile quota control: Data limit, period, start time, warning, phone number.
Web filter: Blacklist, Whitelist.
Access control: SSH, Web, CLI, Telnet.
TPM: TPM 2.0 identification/authentication module.
Certificate Manager: Create CA, server, client, Let’s Encrypt, SCEP certificates.
802.1x: Port-based network access control client.

VPN
OpenVPN: Multiple clients/server, 27 encryption methods.
IPsec: XFRM, IKEv1, IKEv2, 14 encryption methods.
GRE: GRE tunnel, GRE over IPsec.
PPTP/L2TP: Client/server simultaneous, L2TPv3, L2TP over IPsec.
Stunnel: Adds TLS encryption to existing clients/servers.
DMVPN: Scalable IPsec VPNs, Phase 2/3, dual hub.
SSTP, ZeroTier, WireGuard, Tinc, Tailscale support.

OPC UA / MODBUS / DNP3 / DLMS
Supports client/server modes, TCP/USB, custom registers, data formats (INT, UINT, float, HEX, ASCII), data protocols (HTTP(S), MQTT, Azure MQTT), MQTT gateway, Modbus TCP, DNP3 Station/Outstation, DLMS Client.

API
Teltonika Web API (beta) for device data retrieval/control.

MONITORING & MANAGEMENT
WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS.

IOT PLATFORMS
ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core support.

SYSTEM CHARACTERISTICS
CPU: MediaTek Dual-core 880 MHz, MIPS1004Kc.
RAM: 256 MB DDR3.
FLASH: 16 MB serial NOR, 256 MB serial NAND.

FIRMWARE / CONFIGURATION
WEB UI, FOTA, RMS, Keep settings, Factory reset.

FIRMWARE CUSTOMISATION
RutOS (OpenWrt), Busybox shell, Lua, C/C++. SDK, GPL customization, Package Manager.

LOCATION TRACKING
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS. Coordinates via WebUI, SMS, TAVL, RMS. NMEA 0183, NTRIP. Geofencing: Multiple zones.

USB
USB 2.0, Samba, USB-to-serial, external HDD/flash/printer, storage formats: FAT, FAT32, exFAT, NTFS (RO), ext2/3/4.

INPUT / OUTPUT
1 x Digital Input (0–6V low, 8–30V high), 1 x Digital Output (Open collector, 30V/300mA), Events: Email, RMS, SMS, I/O juggler.

POWER
4-pin industrial DC socket, 9–50 VDC, PoE (passive, 9–50 VDC), Idle <4 W, Max <14 W.

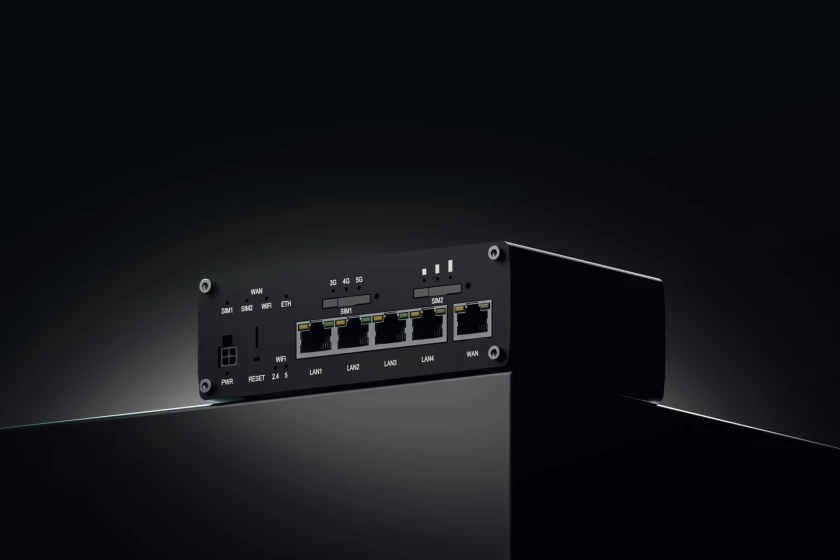

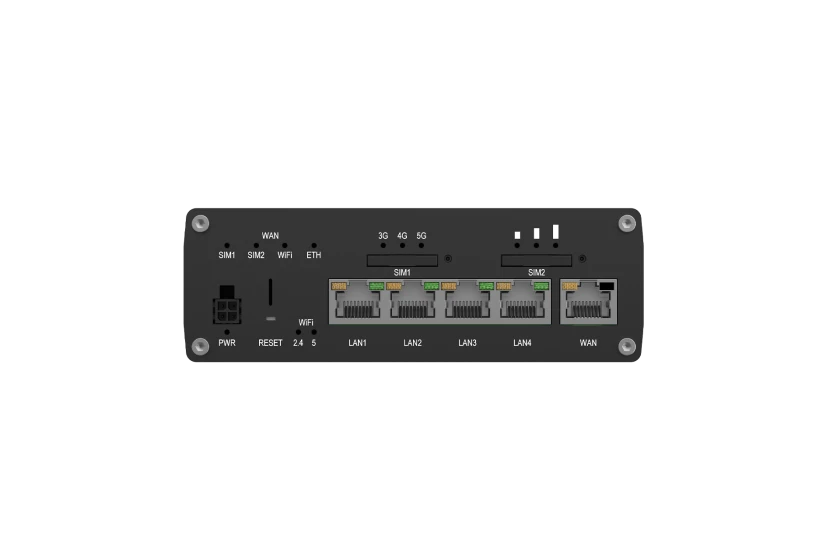

PHYSICAL INTERFACES
Ethernet: 5 x RJ45 10/100/1000 Mbps.
I/Os: 1 x Digital Input, 1 x Digital Output.
Status LEDs: WAN, Mobile, Ethernet, Power, Wi-Fi.
SIM: 2 x Mini SIM, 1.8V/3V.

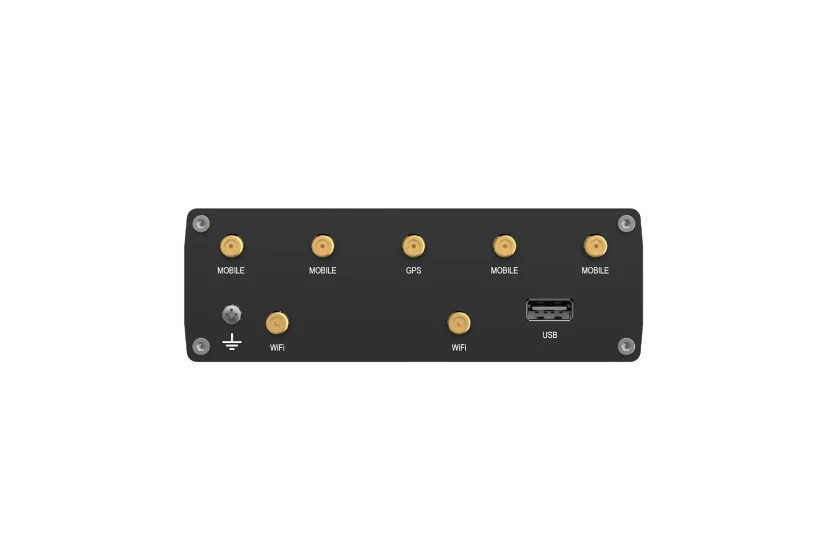

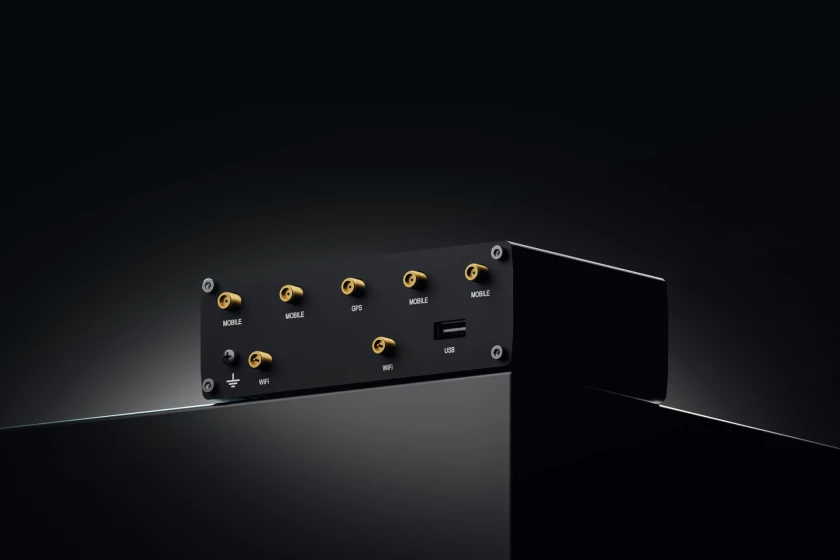

Antennas: 4 x SMA Mobile, 2 x RP-SMA Wi-Fi, 1 x SMA GNSS.
USB: 1 x USB A.
Reset: Reboot/User default/Factory reset button.
Other: 1 x Grounding screw.

PHYSICAL SPECIFICATION
Casing: Anodized aluminum.
Dimensions: 132 x 44.2 x 95 mm.
Weight: 530 g.
Mounting: DIN rail, wall, flat surface (additional kit required).

OPERATING ENVIRONMENT
Temperature: -40 °C to 75 °C.
Humidity: 10% to 90% non-condensing.
Ingress Protection: IP30.

REGULATORY & TYPE APPROVALS
Regulatory: CE, UKCA, CB, FCC, IC, PTCRB, WEEE, RoHS, REACH, UN ECE R10 (E-mark).
Operator: AT&T, T-mobile.

EMC EMISSIONS & IMMUNITY
Standards: CE/UKCA (EN 55032, EN 55035, EN 61000-3-2/3, EN 301 489 series), FCC/ISED (47 CFR Part 15, ICES-003).
ESD: EN 61000-4-2:2009.
Radiated immunity: EN IEC 61000-4-3:2020.
EFT: EN 61000-4-4:2012.
Surge immunity: EN 61000-4-5:2014 + A1:2017.
CS: EN 61000-4-6:2014.
DIP: EN IEC 61000-4-11:2020.

RF
Standards: CE/UKCA (EN 300 328 V2.2.2, EN 303 413 V1.2.1, EN 300 440 V2.2.1, EN 301 893 V2.1.1, EN 301 908 series), FCC/ISED (47 CFR Part 15 Subpart C/E, RSS-247, RSS-Gen, KDB 905462).

RF EXPOSURE
Standards: CE/UKCA EN IEC 62311:2020, FCC/ISED 47 CFR § 2.1091, KDB 447498 D04, RSS-102 Issue 5 Amendment 1.

SAFETY
Standards: CE/UKCA EN IEC 62368-1:2020 + A11:2020, CB IEC 62368-1:2018.
