RUTM55

MOBILE MODULE
The device supports 5G Sub-6 GHz SA, NSA with download speeds of 2.4 / 3.4 Gbps DL (4×4 MIMO) and upload speeds of 900 / 550 Mbps UL (2×2 MIMO). 4G LTE provides downlink Cat 19 up to 1.6 Gbps (4×4 MIMO) and uplink Cat 18 up to 200 Mbps.

3GPP RELEASE
Release 16

ESIM
Consumer type eSIM with profile download and removal operations, supporting up to 7 eSIM profiles. Data plans are not included.

SIM SWITCH
Supports dual SIM and eSIM with automatic switching. Auto-switch triggers include weak signal, data limit, SMS limit, roaming, no network, network denied, data connection failure, and SIM idle protection.

STATUS
Status reporting includes IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP), data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC.

SMS
Features include SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS auto-reply, and SMPP.

USSD
Supports sending and reading Unstructured Supplementary Service Data messages.

BLOCK/ALLOW LIST
Operator block or allow list by country or individual operators.

MULTIPLE PDN
Supports different PDNs for multiple network access and services.

BAND MANAGEMENT
Band lock and used band status display.

SIM IDLE PROTECTION SERVICE
When working with devices with two SIM slots, the inactive SIM remains idle until switched to, preventing unwanted data usage.

SIM PIN CODE MANAGEMENT
Enables setting, changing, or disabling the SIM card’s PIN.

APN
Auto APN.

BRIDGE
Direct connection (bridge) between mobile ISP and device on LAN.

PASSTHROUGH
Router assigns its mobile WAN IP address to another device on LAN.

FRAMED ROUTING
Supports an IP network behind the 5G UE.

WIRELESS

WIRELESS MODE
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO).

WI-FI SECURITY
WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF).

SSID/ESSID
SSID stealth mode and access control based on MAC address.

WI-FI USERS
Up to 150 simultaneous connections.

WIRELESS CONNECTIVITY FEATURES
Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k).

WIRELESS MAC FILTER
Allowlist and blocklist.

WIRELESS QR CODE GENERATOR
Once scanned, a user will automatically enter the network without needing login information.

ETHERNET

WAN
1 x WAN port 10/100/1000 Mbps, compliant with IEEE 802.3, 802.3u, 802.3az, supports auto MDI/MDIX crossover.

LAN
3 x LAN ports 10/100/1000 Mbps, compliant with IEEE 802.3, 802.3u, 802.3az, supports auto MDI/MDIX crossover.

NETWORK

ROUTING
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing.

NETWORK PROTOCOLS
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL).

VOIP PASSTHROUGH SUPPORT
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets.

CONNECTION MONITORING
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection.

FIREWALL
Port forward, traffic rules, custom rules, TTL target customization.

FIREWALL STATUS PAGE
View all firewall statistics, rules, and counters.

PORT MANAGEMENT
View device ports, enable/disable, auto-configuration, change transmission speed, and more.

NETWORK TOPOLOGY
Visual representation of network connections between devices.

HOTSPOT
Captive portal, internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, landing pages, walled garden, user scripts, URL parameters, user groups, individual/group limitations, 9 customizable themes, option to upload/download custom themes.

DHCP
Static/dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases with MAC wildcards.

QOS / SMART QUEUE MANAGEMENT (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e.

DDNS
Supported >77 service providers, manual configuration possible.

DNS OVER HTTPS
Secure DNS resolution by routing queries over HTTPS.

NETWORK BACKUP
Wi-Fi WAN, Mobile, VRRP, Wired options with automatic failover.

LOAD BALANCING
Balance Internet traffic over multiple WAN connections.

SSHFS
Mount remote file system via SSH protocol.

VRF SUPPORT
Initial virtual routing and forwarding (VRF) support.

TRAFFIC MANAGEMENT
Real-time monitoring, wireless signal charts, traffic usage history.

SECURITY

802.1X
Port-based network access control client.

AUTHENTICATION
Pre-shared key, digital certificates, X.509 certificates, TACACS+, internal/external RADIUS authentication, IP & login attempts block, time-based login blocking, built-in random password generator.

FIREWALL
Pre-configured rules via WebUI, unlimited rules via CLI; DMZ; NAT; NAT-T.

ATTACK PREVENTION
DDOS prevention (SYN flood, SSH, HTTP/HTTPS attacks), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL, FIN scan attacks).

VLAN
Port and tag-based VLAN separation.

MOBILE QUOTA CONTROL
Mobile data limit, customizable period, start time, warning limit, phone number.

WEB FILTER
Blacklist for unwanted sites, Whitelist for allowed sites.

ACCESS CONTROL
Flexible access for SSH, Web UI, CLI, Telnet.

TPM
Identification and authentication module, TPM 2.0 standard.

CERTIFICATE MANAGER
Create CA, server, client, Let’s Encrypt, SCEP certificates.

VPN

OPENVPN
Multiple clients and server simultaneously, 27 encryption methods.

OPENVPN ENCRYPTION
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, AES-128-CBC/CFB/CFB1/CFB8/OFB/GCM 128, AES-192-CBC/CFB/CFB1/CFB8/OFB/GCM 192, AES-256-CBC/CFB/CFB1/CFB8/OFB/GCM 256.

IPSEC
XFRM, IKEv1, IKEv2, with 14 encryption methods (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16).

GRE
GRE tunnel, GRE over IPsec support.

PPTP, L2TP
Client/Server simultaneously, L2TPv3, L2TP over IPsec support.

STUNNEL
Proxy adding TLS encryption to clients/servers without code changes.

DMVPN
Scalable IPsec VPNs, Phase 2 & 3, Dual Hub support.

SSTP
Client instance support.

ZEROTIER
Client support.

WIREGUARD
VPN client and server support.

TINCSCALE
Encryption, authentication, compression in tunnels; client/server support.

TAILSCALE
Encrypted point-to-point connections using WireGuard protocol.

OPC UA
Supported modes: Client, Server. Supported connection types: TCP.

MODBUS
Supported modes: Server, Client. Supported connection types: TCP, USB. Custom registers: MODBUS TCP register block requests, read/write file inside router, extend MODBUS TCP Client functionality. Supported data formats: 8-bit INT/UINT; 16-bit INT/UINT; 32-bit float/INT/UINT (ABCD, DCBA, CDAB, BADC); HEX, ASCII.

DATA TO SERVER
Protocols: HTTP(S), MQTT, Azure MQTT. Extract parameters from multiple sources/protocols and send to single server. Custom LUA scripting supported.

MQTT GATEWAY
Modbus MQTT Gateway allows sending/receiving MODBUS Server commands via MQTT broker.

DNP3
Supported modes: TCP Master, DNP3 Outstation. Connection: TCP, USB.

DLMS/COSEM
DLMS protocol for utility meter data exchange. Supported modes: Client. Connection: TCP.

API
Teltonika Networks Web API (beta) to retrieve or change data. Documentation: https://developers.teltonika-networks.com.

MONITORING & MANAGEMENT

WEB UI
HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshoot, multiple event log servers, firmware notifications, event/system/kernel logs, Internet status.

FOTA
Firmware update from server with automatic notification.

SSH
SSH v1 and v2 support.

SMS
SMS status/configuration, send/read via HTTP POST/GET.

CALL
Reboot, status, mobile data on/off, output on/off, answer/hang-up with timer, Wi-Fi on/off.

EMAIL
Receive email status alerts.

TR-069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem.

MQTT
MQTT Broker, publisher.

SNMP
v1/v2/v3, SNMP Trap, brute force protection.

JSON-RPC
Management API over HTTP/HTTPS.

RMS
Teltonika Remote Management System.

IOT PLATFORMS
ThingWorx: Monitor WAN type, IP, operator, signal strength, network type. Cumulocity: Monitor device model, revision, serial, WAN type/IP, cell ID, ICCID, IMEI, operator, signal; supports reboot and firmware upgrade. Azure IoT Hub: Supports Data to Server, Direct method, Plug and Play with Device Provisioning Service.

SYSTEM CHARACTERISTICS
CPU: MediaTek Dual-Core 880 MHz, MIPS1004Kc. RAM: 256 MB DDR3. Flash storage: 16 MB serial NOR, 256 MB serial NAND.

FIRMWARE / CONFIGURATION
WEB UI: Update FW from file/server, configuration profiles, backup. FOTA: Update FW. RMS: Update FW/config for multiple devices. Keep settings: Update FW without losing configuration. Factory reset: Restore all settings to default.

FIRMWARE CUSTOMISATION
OS: RutOS (OpenWrt based). Supported languages: Busybox shell, Lua, C, C++, Python, Java in package manager. Development tools: SDK package. GPL customization: Create custom branded firmware/web pages. Package manager: Install additional software.

LOCATION TRACKING
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS. Coordinates via WebUI, SMS, TAVL, RMS. NMEA: 0183. NTRIP protocol supported. Server software: TAVL, RMS. Geofencing: Configurable zones.

SERIAL
RS232: Terminal block TX/RX. RS485: Terminal block A/B (2-wire). Serial functions: Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client.

USB
USB 2.0, Samba share, USB-to-serial, connect external HDD/flash/modem/printer/USB-serial. Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2/3/4.

INPUT / OUTPUT
Input: 1 digital dry (0–3 V), 1 galvanically isolated digital (0–50 V), 1 analog (0–24 V). Output: 1 isolated open collector (50 V, 500 mA), 1 SPST relay (24 V, 10 A). Events via Email, RMS, SMS. I/O juggler to trigger events.

POWER
Connector: 3-pos plugable terminal. Input voltage: 9–50 VDC, reverse polarity, surge protection >51 VDC 10µs. Passive PoE over Port 1, 9–50 VDC, Mode B. Idle power <8.5 W, Max <14.5 W.

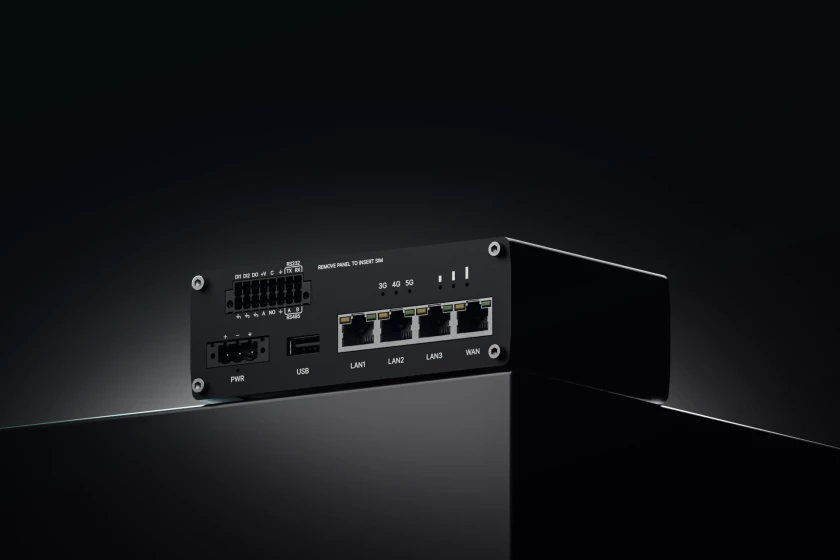

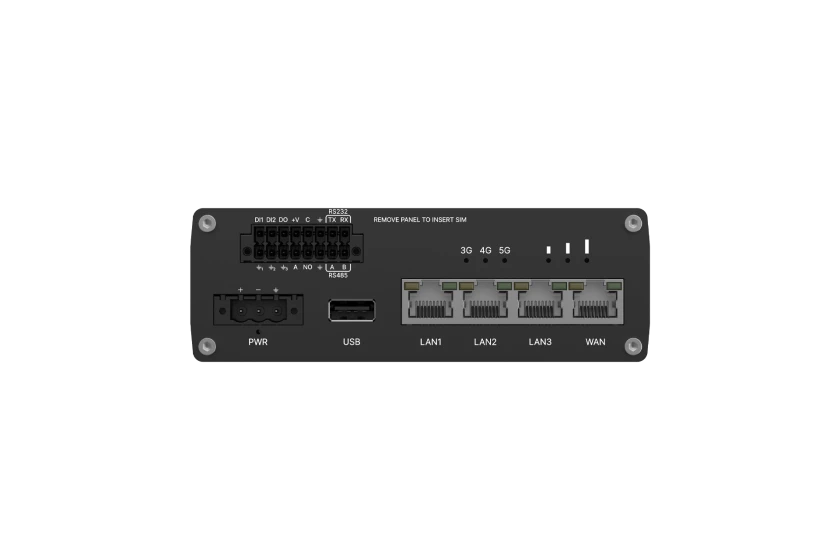

PHYSICAL INTERFACES

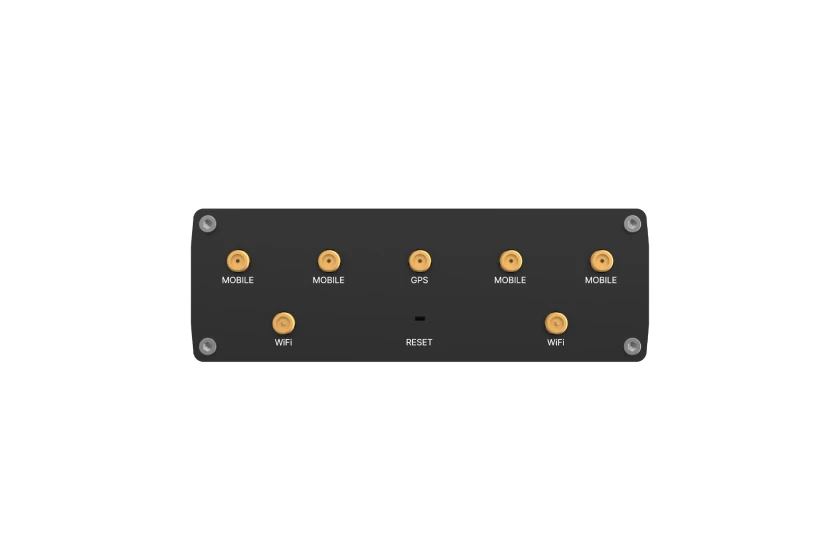

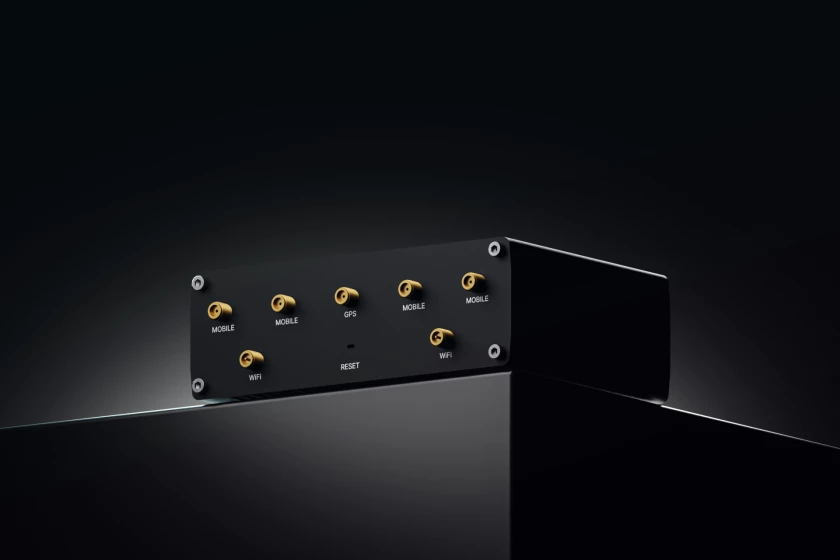

Ethernet: 4 x RJ45 10/100/1000 Mbps. I/Os as above. Status LEDs: 3 Mobile connection type, 3 strength, 6 LAN, 1 power. SIM: 2 x Mini SIM slots 1.8/3 V. Power: 1 x 3-pin connector. Antennas: 4 SMA Mobile, 2 RP-SMA Wi-Fi, 1 SMA GNSS. USB: 1 x USB A. RS232/RS485: 2 pins each. Reset: Reboot/User default/Factory reset.

PHYSICAL SPECIFICATION
Casing: Anodized aluminum. Dimensions: 132 x 44.2 x 95 mm. Weight: 430 g. Mounting: DIN rail, wall, flat surface (kits required).

OPERATING ENVIRONMENT
Temperature: -40 °C to 75 °C. Humidity: 10–90% non-condensing. Ingress Protection: IP30.

REGULATORY & TYPE APPROVALS
CE, UKCA, CB, RCM, EAC, UCRF, WEEE.
