MOBILE MODULE
The device supports 4G LTE Cat 6 up to 300 DL / 50 UL Mbps; 3G up to 42 DL / 5.76 UL Mbps.

3GPP RELEASE
Release 11.

SIM SWITCH
Supports 2 SIM cards with automatic switching. Switch triggers include weak signal, data limit, SMS limit, roaming, no network, network denied, data connection failure, and SIM idle protection.

STATUS
Status reporting includes IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC.

SMS
SMS features include SMS status, configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, and SMPP.

USSD
Supports sending and reading Unstructured Supplementary Service Data messages.

BLOCK / ALLOW LIST
Operator block or allow list configurable by country or individual operators.

MULTIPLE PDN
Supports different PDNs for multiple network access and services.

BAND MANAGEMENT
Includes band lock and used band status display.

SIM IDLE PROTECTION SERVICE
Enables the router to periodically switch to the unused SIM card and establish a data connection to prevent the SIM card from being blocked.

SIM PIN CODE MANAGEMENT
Allows setting, changing, or disabling the SIM card’s PIN.

APN
Auto APN configuration supported.

BRIDGE
Provides direct connection (bridge) between mobile ISP and device on LAN.

PASSTHROUGH
Router assigns its mobile WAN IP address to another device on LAN.

WIRELESS

Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA).

Wi-Fi security
WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF).

SSID / ESSID
SSID stealth mode and access control based on MAC address.

Wi-Fi users
Up to 150 simultaneous connections.

Wireless Connectivity Features
Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k).

Wireless MAC filter
Allowlist, blocklist.

Wireless QR code generator
Users can join network by scanning QR code without entering login credentials.

TravelMate
Forwards Wi-Fi hotspot landing page to a subsequently connected device.

ETHERNET

WAN
1 x WAN port 10/100/1000 Mbps, compliant with IEEE 802.3, 802.3u, 802.3az standards, supports auto MDI/MDIX crossover.

Fibre
1 x SFP port (cannot work simultaneously with Ethernet WAN port).

LAN
4 x LAN ports, 10/100/1000 Mbps, compliant with IEEE 802.3, 802.3u, 802.3az standards, supports auto MDI/MDIX crossover.

NETWORK

Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing.

Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN.

VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers for proper routing of VoIP packets.

Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection.

Firewall
Port forward, traffic rules, custom rules, TTL target customization.

Firewall status page
View all firewall statistics, rules, and rule counters.

Port management
View device ports, enable/disable, configure transmission speed, and auto-configuration options.

Network topology
Visual representation of network connections.

Hotspot
Captive portal, internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, landing page management, walled garden, user scripts, URL parameters, user groups, limitations, 9 default themes, upload/download custom themes.

DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases (MAC with wildcards).

QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e.

DDNS
Supports over 77 service providers; others configurable manually.

DNS over HTTPS
Enables secure DNS resolution via HTTPS.

Network backup
Wi-Fi WAN, Mobile, Fiber, VRRP, Wired; automatic Failover supported.

Load balancing
Balances Internet traffic over multiple WAN connections.

SSHFS
Mount remote filesystem via SSH protocol.

VRF support
Initial virtual routing and forwarding (VRF) support.

Traffic Management
Real-time monitoring, wireless signal charts, traffic usage history.

SECURITY

802.1x
Port-based network access control client.

Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, internal & external RADIUS, IP & login attempt blocks, time-based login blocking, built-in random password generator.

Firewall
Preconfigured firewall rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64.

Attack prevention
DDOS prevention (SYN flood, SSH attack, HTTP/HTTPS attacks), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL, FIN scan attacks).

VLAN
Port and tag-based VLAN separation.

Mobile quota control
Mobile data limit, customizable period, start time, warning limit, phone number.

WEB filter
Blacklist and Whitelist support.

Access control
Flexible control for SSH, Web interface, CLI, Telnet.

Certificate Manager
Create CA, server, client, let’s encrypt, SCEP certificates.

VPN

OpenVPN
Multiple clients and server simultaneously, 27 encryption methods.

IPsec
XFRM, IKEv1, IKEv2 with 14 encryption methods (3DES, DES, AES128/192/256, AES-GCM, etc.).

GRE
GRE tunnel and GRE over IPsec support.

PPTP, L2TP
Client/Server instances, L2TPv3, L2TP over IPsec.

Stunnel
TLS encryption proxy for existing clients/servers.

DMVPN
Scalable IPsec VPNs, Phase 2/3, Dual Hub support.

SSTP, ZeroTier, WireGuard, Tinc, Tailscale
VPN client and server support with encryption and secure connectivity.

OPC UA
Client and Server modes, TCP connection.

MODBUS
Client/Server modes, TCP/USB connections, custom registers, multiple data formats.

DATA TO SERVER
Protocols: HTTP(S), MQTT, Azure MQTT. Sends data from multiple sources to a single server; supports custom LUA scripting.

MQTT Gateway
Modbus MQTT Gateway for sending/receiving commands from MODBUS Server via MQTT.

DNP3
Station/Outstation modes, TCP/USB.

DLMS/COSEM
Standard protocol for utility meter data exchange, client mode, TCP/USB.

API
Teltonika Networks Web API (beta) for retrieving/changing data. Documentation: https://developers.teltonika-networks.com.

MONITORING & MANAGEMENT

WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update notifications, event/system/kernel logs, Internet status.

FOTA
Firmware update from server, automatic notification.

SSH
SSH (v1, v2) support.

Email
Receive email alerts for service status.

SMS
SMS status and configuration.

Call
Reboot, status, Mobile data on/off, output on/off, answer/hang-up timer, Wi-Fi on/off.

TR-069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem.

MQTT
Broker and publisher support.

SNMP
v1/v2/v3, SNMP Trap, brute force protection.

JSON-RPC
Management API over HTTP/HTTPS.

RMS
Teltonika Remote Management System (RMS).

IoT PLATFORMS
ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core – support monitoring, device management, firmware updates, and direct API calls.

SYSTEM CHARACTERISTICS
CPU: Quad-core ARM Cortex A7, 717 MHz.
RAM: 256 MB, DDR3.
FLASH storage: 256 MB, SPI Flash.

FIRMWARE / CONFIGURATION
WEB UI: Update FW from file, check FW on server, configuration profiles, backup.
FOTA: Update FW.
RMS: Update FW/configuration for multiple devices.
Keep settings: Update FW without losing configuration.
Factory reset: Restores all system settings to default.

FIRMWARE CUSTOMISATION
Operating system: RutOS (OpenWrt based Linux OS).
Languages: Busybox shell, Lua, C, C++, Python, Java in Package Manager.
Development tools: SDK package provided.
GPL customization: Create custom branded firmware and web page applications.
Package Manager: Install additional software on device.

LOCATION TRACKING
NTRIP protocol supported.

USB
Data rate: USB 2.0. Applications: Samba share, USB-to-serial.
External devices: HDD, flash drive, modem, printer, USB-serial adapter.
Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2/3/4.

POWER
Connector: 2 x 4-pin industrial DC for main and redundant power.
Input voltage: 9 – 50 VDC, reverse polarity and surge protection.
Power consumption: Idle < 3W, Max 18W.

PHYSICAL INTERFACES
Ethernet: 5 x RJ45 10/100/1000 Mbps.
Status LEDs: WAN, Mobile connection, SIMs, Ethernet, Console, Power.
SIM: 2 x Mini SIM slots, 1.8V/3V.

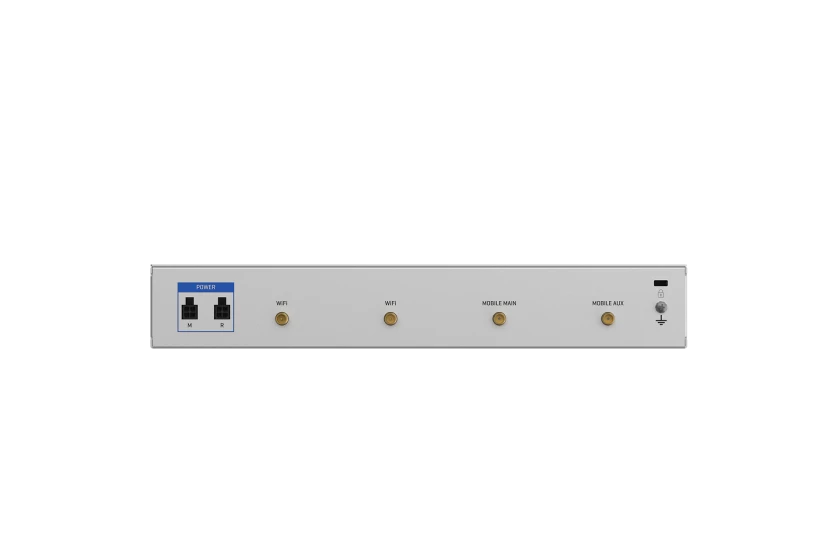

Antennas: 2 x SMA LTE, 2 x RP-SMA Wi-Fi.
USB: 1 x USB-A port.
Reset: Reboot/User default/Factory reset button.
Grounding: 1 x screw, 1 x lock.
Fibre: 1 x SFP port.

PHYSICAL SPECIFICATION
Casing: Full steel housing.
Dimensions: 272 x 42.6 x 122.6 mm.
Weight: 1093 g.
Mounting: Rack mounting kit.

OPERATING ENVIRONMENT
Temperature: -40 °C to 75 °C.
Humidity: 10% to 90% non-condensing.

REGULATORY & TYPE APPROVALS

Regulatory
CE, UKCA, EAC, UCRF, CITC, ANRT, RCM, NTC, CB.

EMC Emissions & Immunity
Standards: EN 55032:2015 + A11:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A1:2019, EN 301 489-1:V2.2.3, EN 301 489-3:V2.1.1, EN 301 489-17:V3.2.4, Draft EN 301 489-52:V1.1.2.
ESD: EN 61000-4-2:2009.
Radiated Immunity: EN IEC 61000-4-3:2006 + A1:2008 + A2:2010.
EFT: EN 61000-4-4:2012.
Surge Immunity (AC Mains): EN 61000-4-5:2014 + A1:2017.
CS: EN 61000-4-6:2014.
DIP: EN IEC 61000-4-11:2020.

RF
Standards: EN 300 328:V2.2.2, EN 301 893:V2.1.1, EN 300 440:V2.2.1, EN 301 908-1:V13.1.1, EN 301 908-2:V13.1.1, EN 301 908-13:V13.1.1.

SAFETY
Standards: CE: EN 62368-1:2014 + A11:2017, EN 62232:2017, EN 50385:2017.
UL/CSA: UL 62368-1 (3rd Ed., Dec 13, 2019), CAN/CSA C22.2 No. 62368-1:19 (3rd Ed., Dec 13, 2019).
CB: IEC 62368-1:2018.
