MOBILE MODULE
Supports 4G LTE Cat 4 with download speeds up to 150 Mbps and upload speeds up to 50 Mbps. 3G connectivity offers up to 21 Mbps downlink and 5.76 Mbps uplink, while 2G provides speeds up to 236.8 kbps for both download and upload.

3GPP RELEASE
Release 11.

STATUS
Includes IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, and signal strength parameters (RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP). Also monitors data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC.

SMS
Supports SMS status, SMS configuration, email to SMS, SMS to email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS auto-reply, and SMPP.

USSD
Supports sending and reading Unstructured Supplementary Service Data messages.

BLOCK/ALLOW LIST
Allows operator block or allow list configuration by country or individual operators.

MULTIPLE PDN
Enables different PDNs for multiple network access and services.

BAND MANAGEMENT
Supports band lock and used band status display.

SIM PIN CODE MANAGEMENT
Allows setting, changing, or disabling the SIM card’s PIN.

APN
Supports automatic APN detection and configuration.

BRIDGE
Provides a direct connection (bridge) between the mobile ISP and a LAN device.

PASSTHROUGH
Gateway assigns its mobile WAN IP address to another device on LAN.

ETHERNET
1 × ETH port, 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, and 802.3az standards. Supports auto MDI/MDIX crossover.

NETWORK

ROUTING
Supports static routing.

NETWORK PROTOCOLS
Supports TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on LAN (WOL), and VXLAN.

VOIP PASSTHROUGH SUPPORT
Includes H.323 and SIP-ALG protocol NAT helpers for proper VoIP packet routing.

CONNECTION MONITORING
Supports Ping Reboot, Wget Reboot, Periodic Reboot, LCP, and ICMP link inspection.

FIREWALL
Provides port forwarding, traffic rules, custom rules, and TTL target customization.

FIREWALL STATUS PAGE
Displays firewall statistics, rules, and rule counters.

PORT MANAGEMENT
Allows viewing, enabling, or disabling device ports, auto-configuration settings, and transmission speed adjustments.

NETWORK TOPOLOGY
Provides a visual representation of the network showing connected devices.

HOTSPOT
Captive portal with internal or external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, customizable landing pages, walled garden, user management, and theming options. Supports 9 customizable themes and the ability to upload/download hotspot themes.

DHCP
Supports static and dynamic IP allocation, DHCP relay, server configuration, status monitoring, and static leases with MAC wildcards.

QOS / SMART QUEUE MANAGEMENT (SQM)
Provides traffic prioritization by source, destination, service, protocol, or port. Supports WMM and 802.11e.

DDNS
Supports over 77 service providers with manual configuration for others.

DNS OVER HTTPS
Provides proxy support for secure DNS resolution.

NETWORK BACKUP
Supports VRRP, wired, and mobile failover options for automatic backup.

SSHFS
Allows mounting remote file systems via SSH protocol.

TRAFFIC MANAGEMENT
Provides real-time monitoring, wireless signal charts, and traffic usage history.

SECURITY

AUTHENTICATION
Supports pre-shared key, digital certificates, X.509, TACACS+, internal and external RADIUS authentication, IP and login attempt blocking, time-based login restrictions, and built-in random password generator.

FIREWALL (ADVANCED)
Includes preconfigured firewall rules via WebUI and unlimited customization via CLI. Supports DMZ, NAT, NAT-T, and NAT64.

ATTACK PREVENTION
Provides DDoS protection (SYN flood, SSH, HTTP/HTTPS attack prevention) and port scan prevention (SYN-FIN, SYN-RST, Xmas, NULL flags, FIN scans).

VLAN
Supports port and tag-based VLAN separation.

MOBILE QUOTA CONTROL
Allows customizable data limits with period, start time, warning limit, and phone number.

WEB FILTER
Supports blacklist and whitelist for website access control.

ACCESS CONTROL
Provides flexible control of SSH, web interface, CLI, and Telnet access.

CERTIFICATE MANAGER
Includes tools for creating CA, server, client, Let’s Encrypt, and SCEP certificates.

VPN

OPENVPN
Supports multiple clients and servers simultaneously with 27 encryption methods.

OPENVPN ENCRYPTION
Supports DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256.

IPSEC
Supports XFRM, IKEv1, IKEv2 with 14 encryption methods (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16).

GRE
Supports GRE tunnels and GRE over IPsec.

PPTP, L2TP
Supports client/server instances simultaneously, L2TPv3, and L2TP over IPsec.

STUNNEL
Adds TLS encryption functionality to existing clients and servers without modifying program code.

DMVPN
Supports scalable IPsec VPNs (Phase 2, Phase 3, and Dual Hub).

SSTP
Supports SSTP client instance.

ZEROTIER
Supports ZeroTier VPN client.

WIREGUARD
Supports WireGuard VPN client and server.

TINC
Provides encryption, authentication, and compression for tunnels. Supports client and server modes.

OPC UA
Supports Client and Server modes via TCP.

MODBUS
Supports Client and Server modes via TCP. Includes custom register block requests and extended functionality.

SUPPORTED DATA FORMATS
8-bit: INT, UINT; 16-bit: INT, UINT (MSB/LSB); 32-bit: FLOAT, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII.

M-BUS
Supports up to 250 client devices, powering up to 6.

M-BUS OVER IP
Enables remote utility meter data communication via IP.

ADVANCED FEATURES
Supports connected device scan, primary/secondary address configuration, and data filtering.

DATA TO SERVER
Supports HTTP(S), MQTT, Azure MQTT protocols for parameter extraction and transfer. Allows custom LUA scripting for server communication.

MQTT GATEWAY
Modbus MQTT Gateway allows sending commands and receiving data from Modbus Server through MQTT broker.

DNP3
Supports Station and Outstation modes over TCP.

DLMS/COSEM
Supports Client mode over TCP for utility meter data exchange.

API
Supports Teltonika Networks Web API (beta) for configurable endpoints.

MONITORING & MANAGEMENT

WEB UI
Supports HTTP/HTTPS, firmware updates, CLI, troubleshooting, logs, and configuration management.

FOTA
Enables firmware updates from the server with notifications.

SSH
Supports SSH (v1, v2).

SMS CONTROL
Allows reboot, mobile data on/off, output control, and timed call handling.

TR-069
Supports OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, FriendlyTech, and AVSystem.

MQTT
Supports MQTT broker and publisher.

SNMP
Supports SNMP v1, v2, v3 with trap and brute-force protection.

JSON-RPC
Management API over HTTP/HTTPS.

RMS
Supports Teltonika Remote Management System (RMS).

IOT PLATFORMS
Supports ThingWorx, Cumulocity, Azure IoT Hub, and AWS IoT Core integration.

SYSTEM CHARACTERISTICS
Powered by ARM Cortex-A7 1.3 GHz CPU, 256 MB DDR3 RAM, and 512 MB SPI Flash storage.

FIRMWARE / CONFIGURATION
Supports firmware update via WebUI, FOTA, and RMS. Configuration backup, profile management, and factory reset available.

FIRMWARE CUSTOMIZATION
Runs RutOS (OpenWrt-based Linux OS). Supports BusyBox shell, Lua, C, and C++. Includes SDK package and package manager for customization.

INPUT / OUTPUT
1 × Digital Input (0–6 V logic low, 8–30 V logic high) and 1 × Digital Output (open collector, max 30 V, 300 mA). Supports event triggers via Email, RMS, or SMS.

POWER
4-pin industrial DC power socket with 12–30 VDC input. Supports passive PoE via LAN1 port (12–30 VDC, Mode B). Idle consumption: 3 W; Max: 6 W.

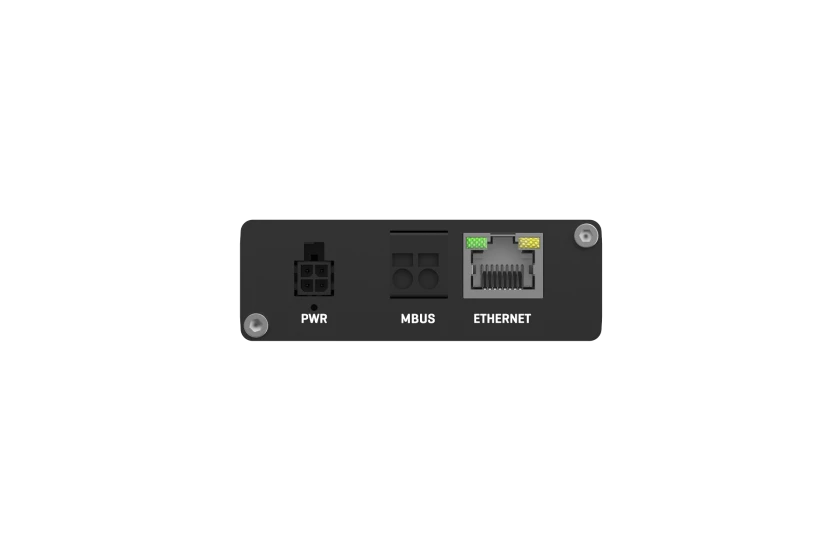

PHYSICAL INTERFACES
1 × RJ45 port (10/100/1000 Mbps), 1 × Digital Input, 1 × Digital Output, 3 × connection status LEDs, 3 × signal LEDs, 2 × Ethernet LEDs, 1 × Power LED, 1 × SIM slot (Mini SIM 2FF), 1 × SMA LTE antenna connector, and reset button.

MBUS
1 × M-Bus Interface.

PHYSICAL SPECIFICATION
Aluminium housing, dimensions 74.5 × 25 × 73 mm, weight 145 g. Mounting options include DIN rail, wall mount, or flat surface (requires kit).

OPERATING ENVIRONMENT
Operating temperature -40 °C to +75 °C, humidity 10–90% non-condensing, IP30 rating.

REGULATORY & TYPE APPROVALS
Certified for CB, CE, UKCA, RoHS, REACH, and WEEE.

EMC EMISSIONS & IMMUNITY
ESD: EN 61000-4-2:2009
Radiated Immunity: EN 61000-4-3:2006 + A1:2008 + A2:2010
EFT: EN 61000-4-4:2012

SAFETY STANDARDS
IEC 62368-1:2018.
