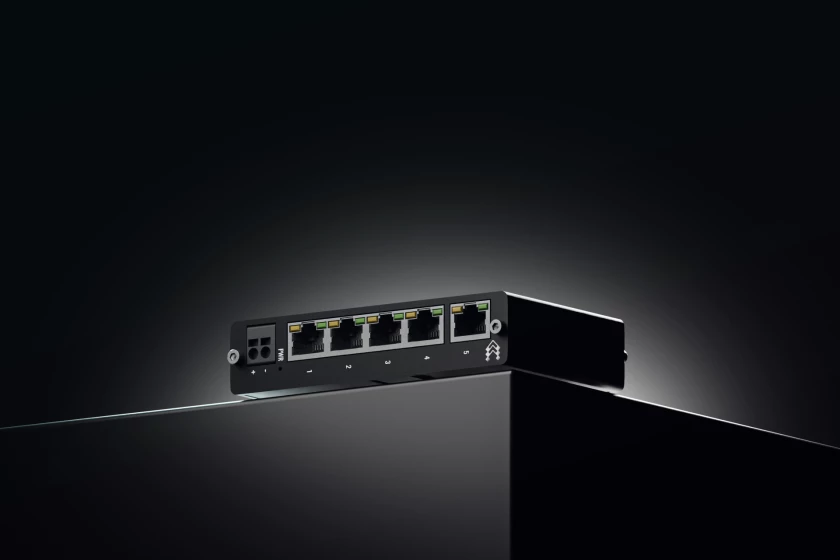

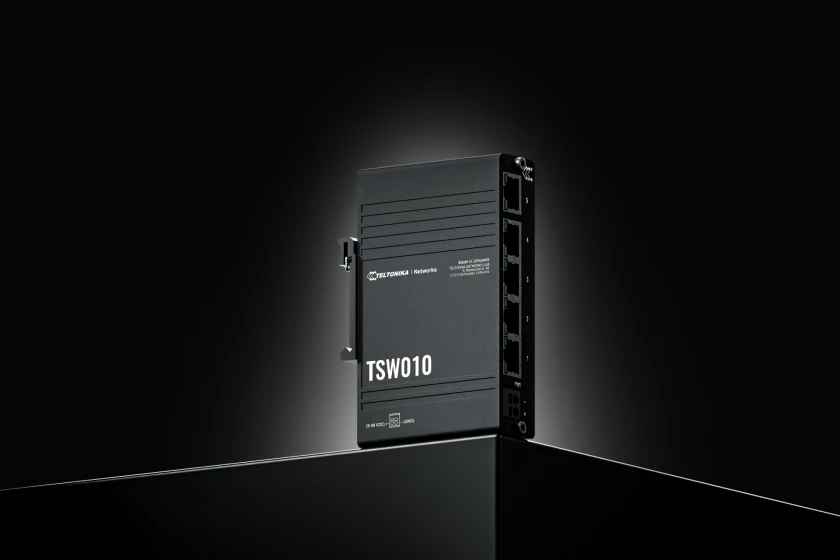

TSW010
Lorem ipsum dolor sit amet, consectetur aTSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.dipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
ETHERNET
5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover.
IEEE 802.3 SERIES STANDARDS
802.3i, 802.3u, 802.3x, 802.3az.
INDUSTRIAL PROTOCOLS
Profinet Class A conformance (available with optional order code).
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking): 1 Gbps.
MAC address table size: 2K entries.
Jumbo frame support: 2048 bytes.
POWER
Connector: 2-pin industrial DC power socket.
Input voltage range: 9 – 30 VDC.
PoE (passive): Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC.
Power consumption: Idle: 0.3 W / Max: 0.9 W.
PHYSICAL INTERFACES

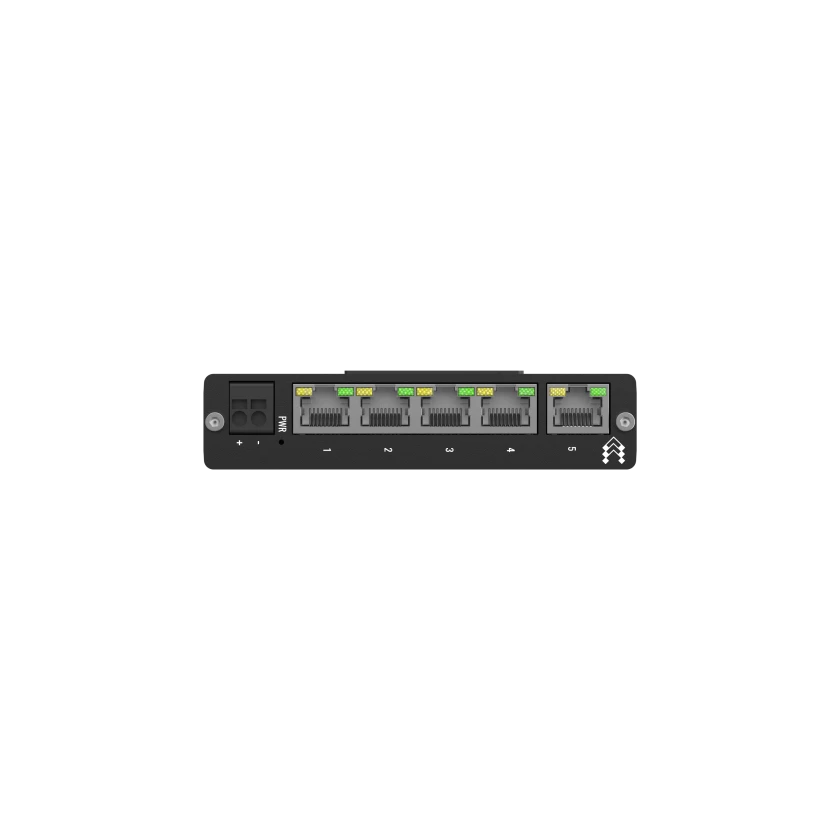

Ethernet: 5 x RJ45 ports, 10/100 Mbps.
Status LEDs: 1 x Power LED, 10 x ETH status LEDs.
Power: 1 x 2-pin industrial DC power socket.
PHYSICAL SPECIFICATION
Casing material: Aluminium housing.
Dimensions (W x H x D): 113.1 x 27.4 x 80.5 mm.
Weight: 146.5 g.

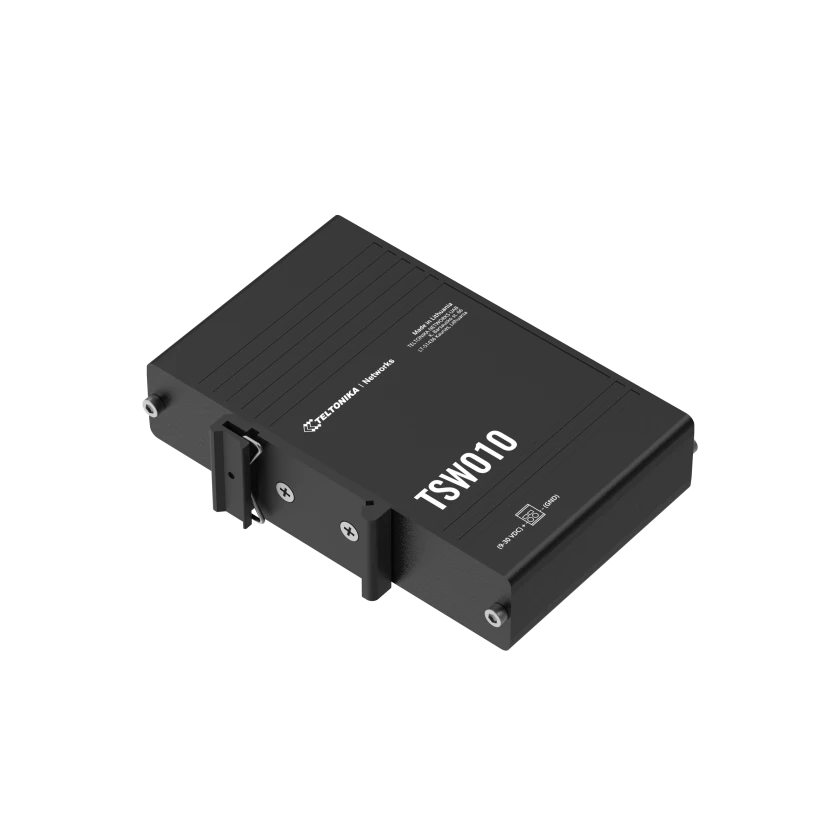

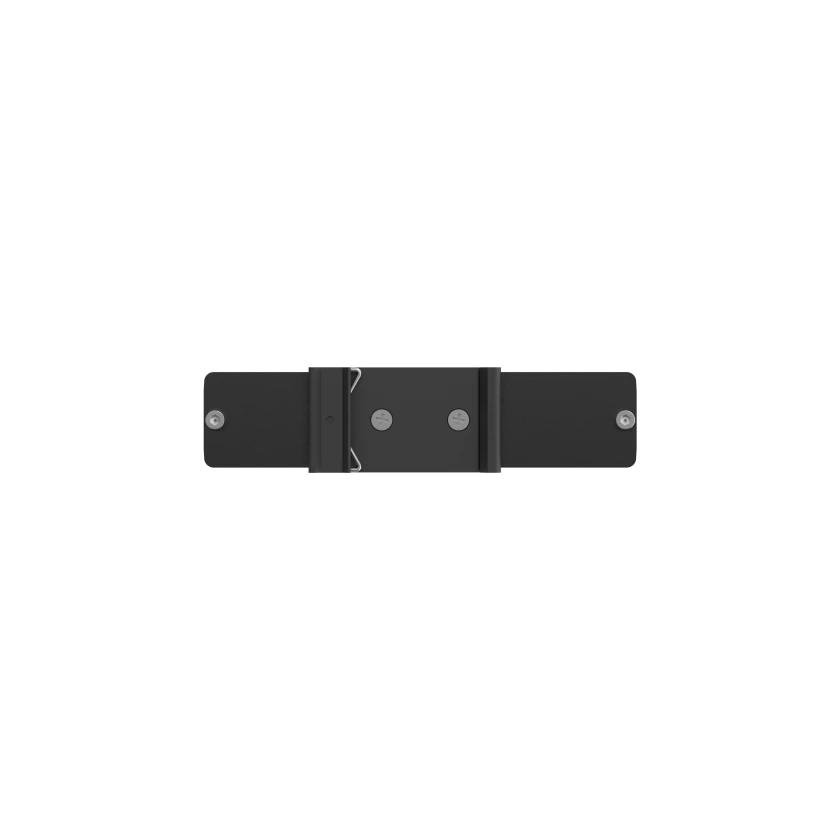

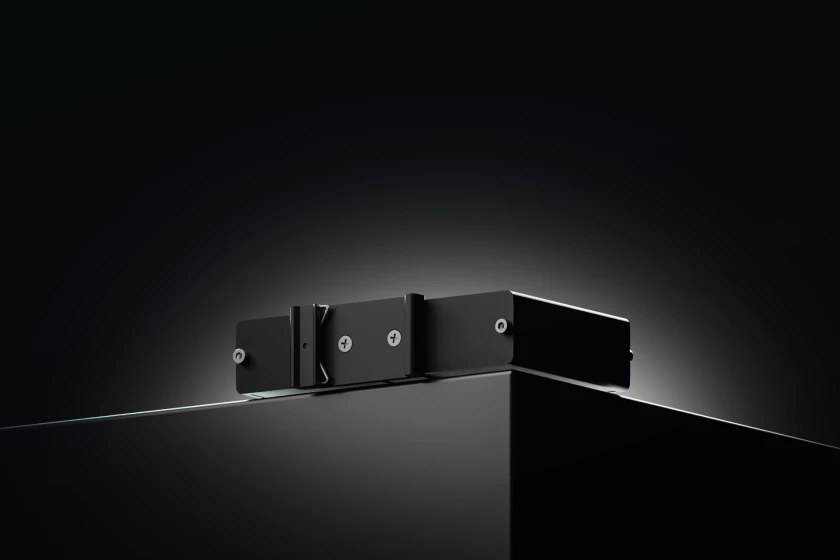

Mounting options: Integrated DIN rail bracket; wall mount and flat surface (additional kit needed).
OPERATING ENVIRONMENT
Operating temperature: -40 °C to 75 °C.
Operating humidity: 5% to 95% non-condensing.
Ingress Protection Rating: IP30.
REGULATORY & TYPE APPROVALS
Regulatory: CE, UKCA, EAC, FCC, IC, CB, RCM, CITC, ANRT, SDPPI (POSTEL), Kenya, REACH, RoHS, WEEE, UL Safety.
EMC EMISSIONS & IMMUNITY
Standards: EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020.
ESD: EN 61000-4-2:2009.
Radiated Immunity: EN IEC 61000-4-3:2020.
EFT: EN 61000-4-4:2012.
Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017.
CS: EN 61000-4-6:2014.
SAFETY
Standards:
CE: EN IEC 62368-1:2020 + A11:2020.
RCM: AS/NZS 62368.1:2022.
CB: IEC 62368-1:2018.
SAFETY (ORDINARY LOCATIONS)
Standards: UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019).
