TSW040

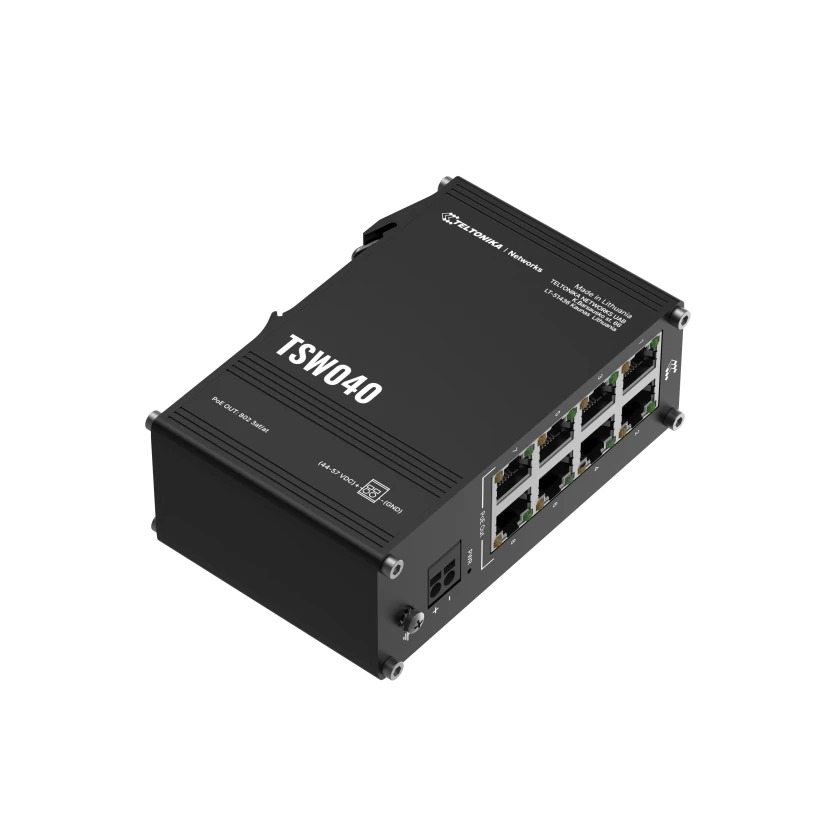

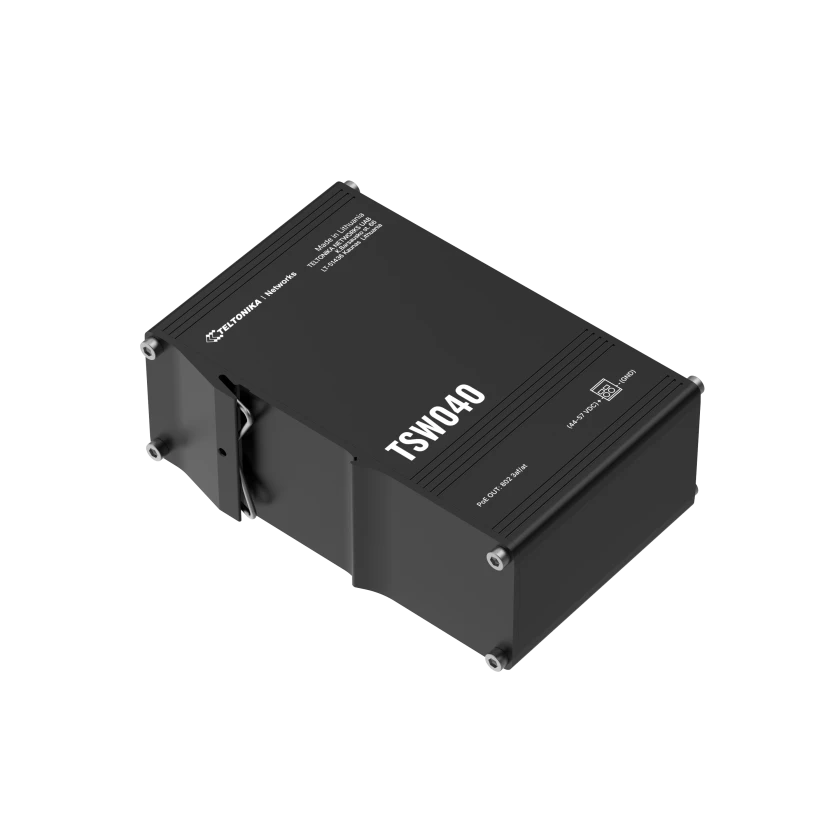

The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.
ETHERNET
8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover.
IEEE 802.3 SERIES STANDARDS
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az.
INDUSTRIAL PROTOCOLS
Profinet Class A conformance (available with optional order code).
POE OUT
PoE+ ports: Port 1 – 8.
PoE standards: IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2) compliant PSE ports, over spare pairs (Mode B).
PoE Max Power per Port (at PSE): 30 W.
Total PoE Power Budget (at PSE): 240 W.
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking): 20 Gbps.
Packet buffer: 128 KB.
MAC address table size: 2K entries.
Jumbo frame support: 9216 bytes.
POWER
Connector: 2-pin industrial DC power socket.
Input voltage range: 7 – 57 VDC, overvoltage protection 60V max, reverse polarity protection 80V max, surge protection min 64.4V / max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2- PGND.
PoE-Out input voltage range: 44 – 57 VDC.
Power consumption: Idle 1 W / Max 2 W / PoE Max 246 W.

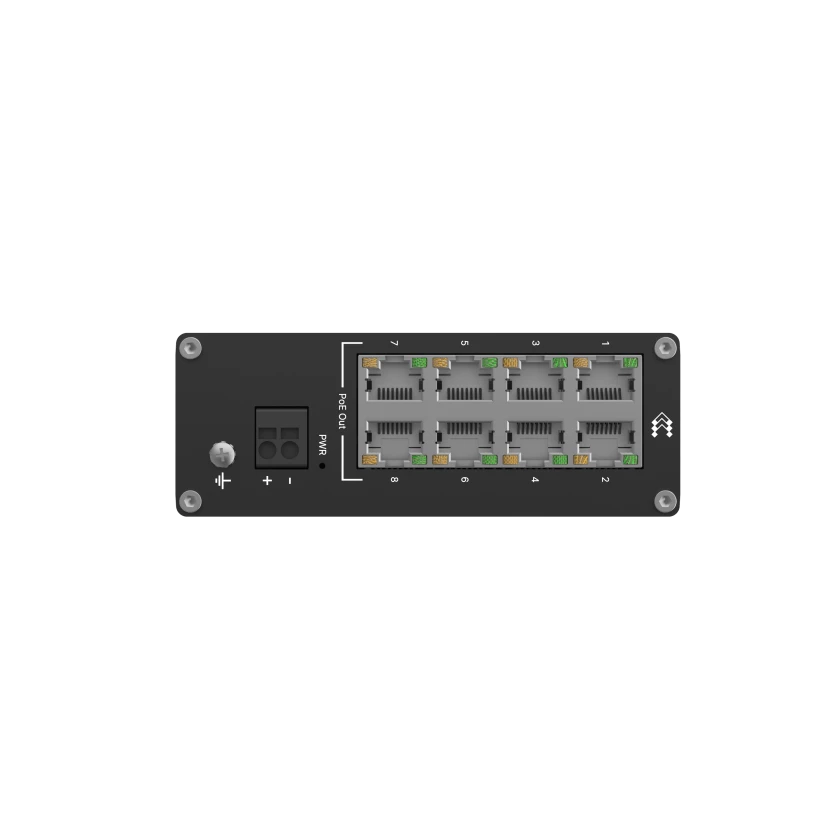

PHYSICAL INTERFACES
Ethernet: 8 x RJ45 ports, 10/100 Mbps.
Status LEDs: 1 x Power LED, 16 x ETH status LEDs.
Power: 1 x 2-pin industrial DC power socket.
Other: 1 x Grounding screw.
PHYSICAL SPECIFICATION
Casing material: Anodized aluminum housing and panels.
Dimensions (W x H x D): 113.1 x 41.2 x 74.6 mm.

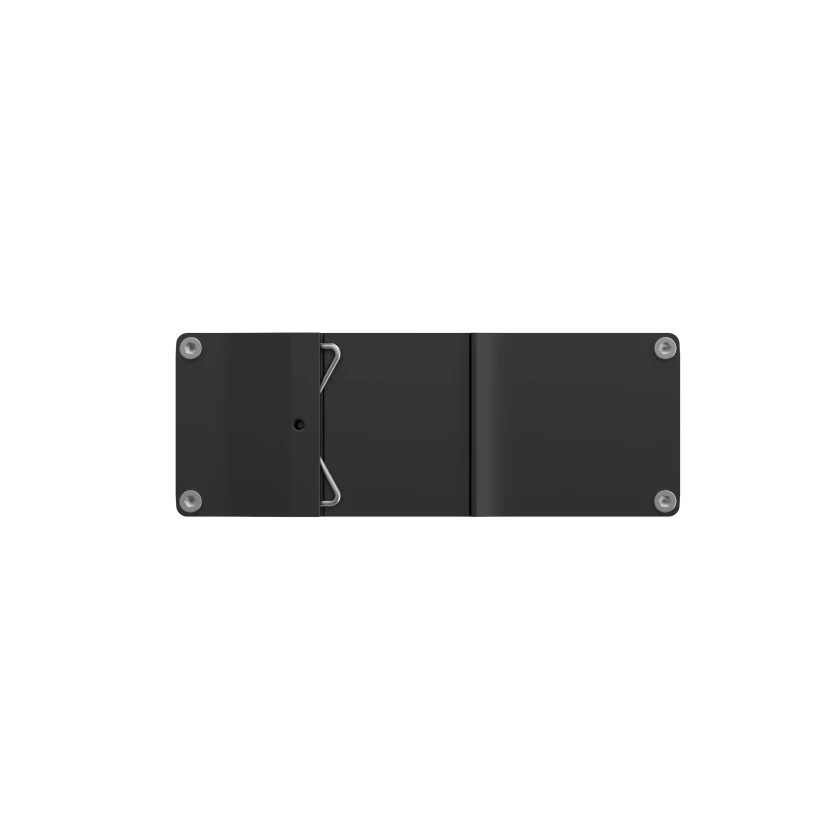

Mounting options: Integrated DIN rail bracket; wall mount and flat surface (additional kit needed).
Weight: 280 g.
OPERATING ENVIRONMENT
Operating temperature: -40 °C to 75 °C.
Operating humidity: 5% to 95% non-condensing.
Ingress protection rating: IP30.
