ETHERNET
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover.

IEEE 802.3 SERIES STANDARDS
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az.

INDUSTRIAL PROTOCOLS
Profinet Class A conformance (available with optional order code).

POE OUT
Port 1 – 4 support PoE+.

POE STANDARDS
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (Order code: TSW100 1***).
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (Order code: TSW100 0***).

POE MAX POWER PER PORT (AT PSE)
30 W.

POE POWER BUDGET (AT PSE)
120 W.

PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking): 10 Gbps.
Packet buffer: 128 KB.
MAC address table size: 2K entries.
Jumbo frame support: 9216 bytes.

POWER
Connector: 4-pin industrial DC power socket.
Input voltage range: 7 – 57 VDC.
PoE-Out input voltage range: 44 – 57 VDC.
Power consumption: Idle – 2 W / Max (no PoE) – 9 W / PoE Max – 129 W.

PHYSICAL INTERFACES

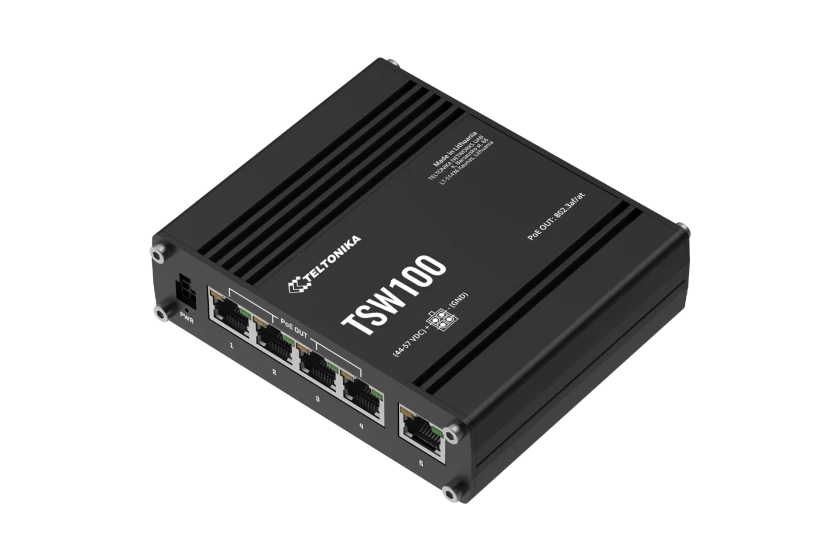

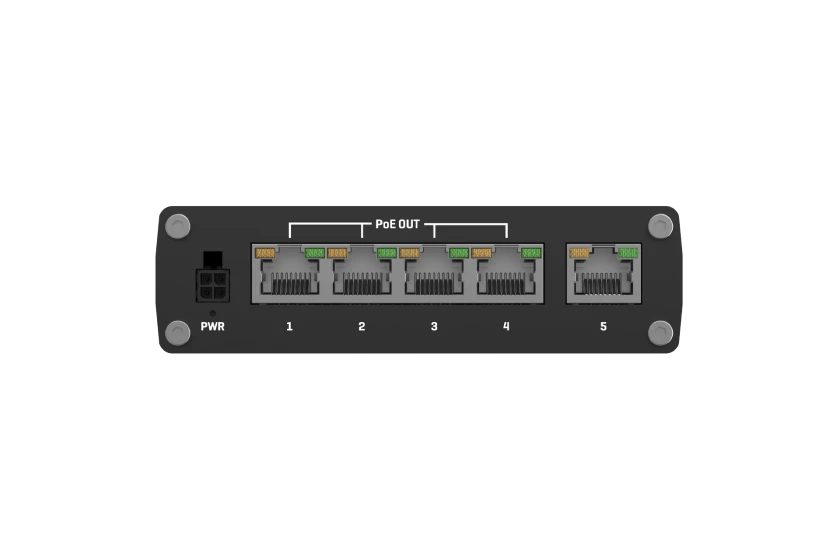

Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps.
Status LEDs: 1 x Power LED, 10 x ETH status LEDs.
Power: 1 x 4-pin power connector.

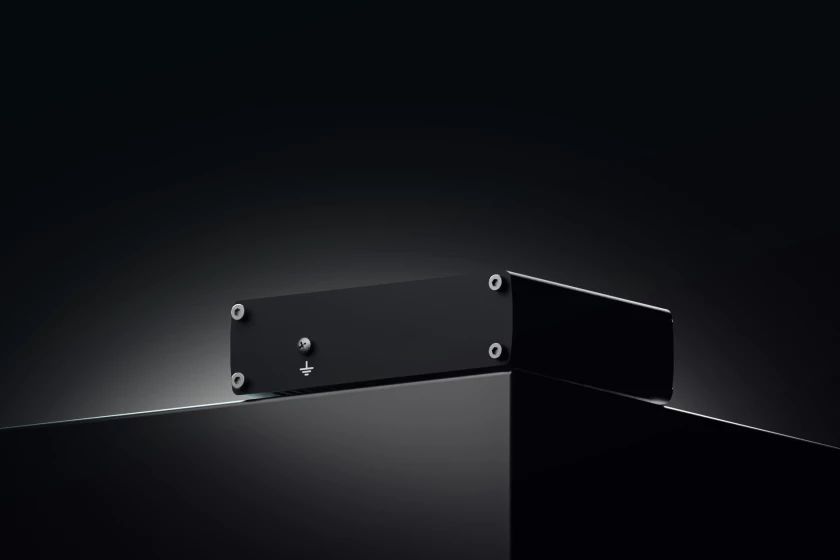

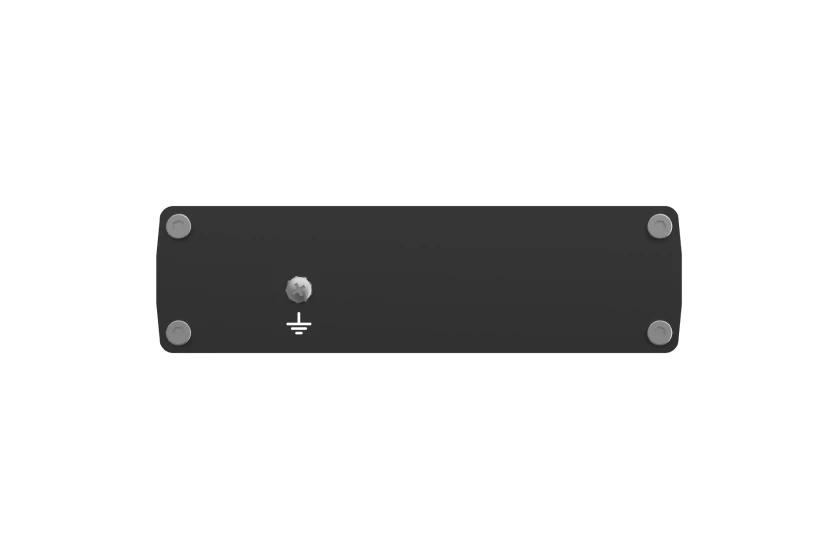

Other: 1 x Grounding screw.

PHYSICAL SPECIFICATION

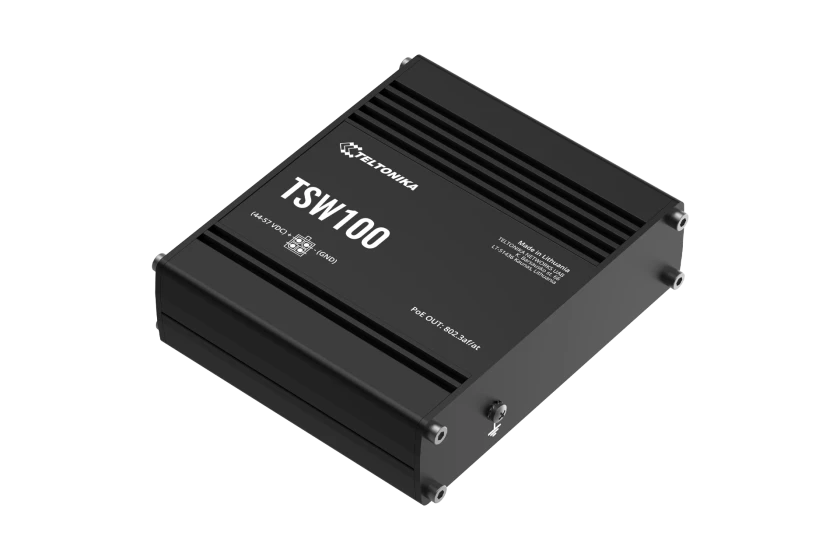

Casing material: Full aluminum housing.
Dimensions (W x H x D): 115 x 32.2 x 101.2 mm.
Weight: 350 g.
Mounting options: DIN rail, wall mount, flat surface (all require additional kit).

OPERATING ENVIRONMENT
Operating temperature: -40 °C to 75 °C.
Operating humidity: 5% to 95% non-condensing.
Ingress protection rating: IP30.

REGULATORY & TYPE APPROVALS
CE, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, Anatel, CB, E-mark.

EMC EMISSIONS & IMMUNITY STANDARDS
EN 55032:2015.
EN 55035:2017.
EN 301 489-1 V2.2.3.

ESD
EN 61000-4-2:2009.

RADIATED IMMUNITY
EN IEC 61000-4-3:2006 + A1:2008 + A2:2010.

EFT
EN 61000-4-4:2012.

SURGE IMMUNITY (AC MAINS POWER PORT)
EN 61000-4-5:2014.

CS
EN 61000-4-6:2014.

DIP
EN 61000-4-11:2004.

SAFETY STANDARDS
IEC 62368-1:2018.
EN IEC 62368-1:2020 + A11:2020.
