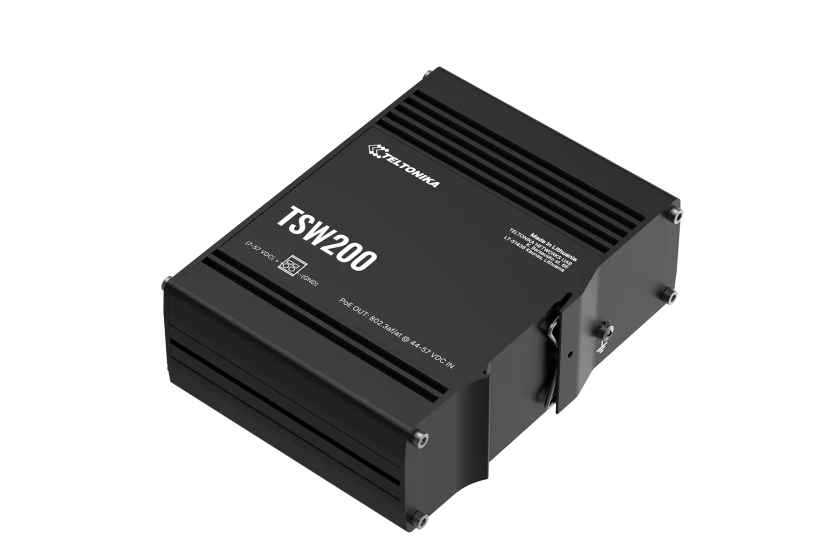

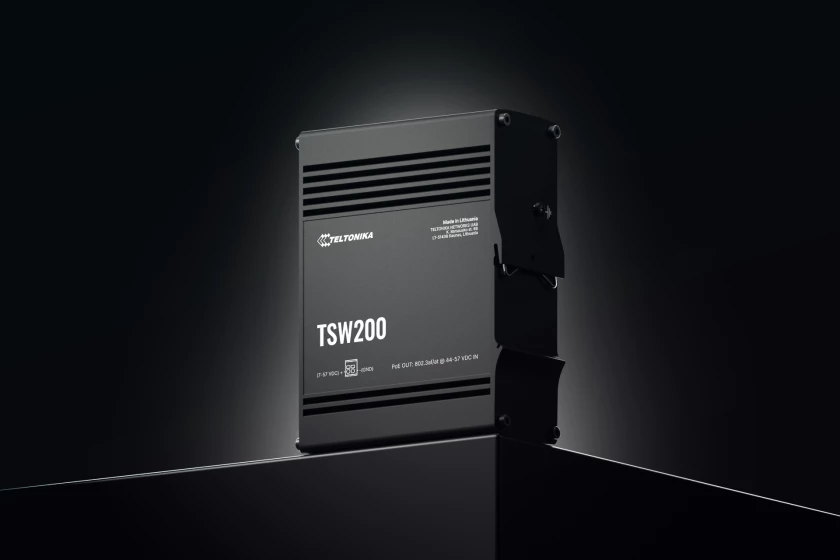

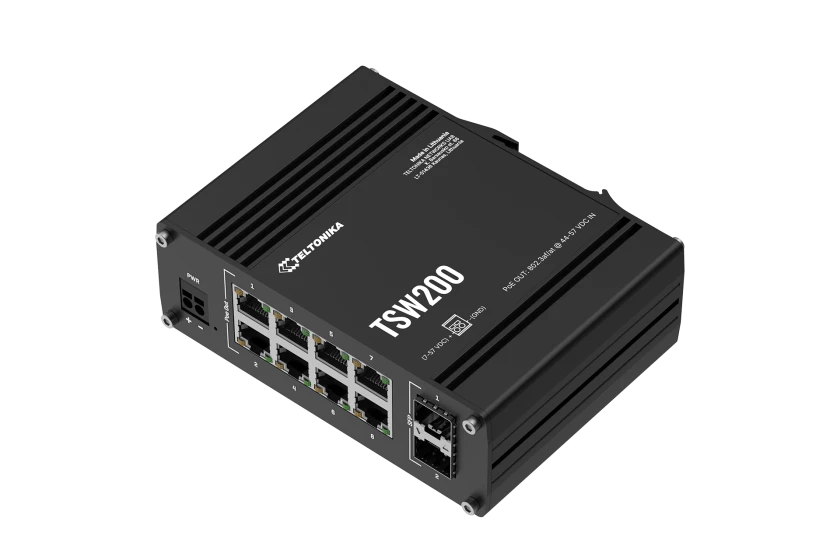

TSW200
TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.
ETHERNET
8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
FIBRE
2 x SFP ports
IEEE 802.3 SERIES STANDARDS
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
INDUSTRIAL PROTOCOLS
Profinet Class A conformance (available with optional order code)
POE OUT
PoE+ PORTS
Port 1 – 8
POE STANDARDS
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (From batch 42)
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (From batch 1-41)
POE MAX POWER PER PORT (AT PSE)
30 W
TOTAL POE POWER BUDGET (AT PSE)
240 W
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking): 20 Gbps
Packet buffer: 128 KB
MAC address table size: 2K entries
Jumbo frame support: 9216 bytes
POWER
Connector: 2-pin industrial DC power socket
Input voltage range: 7 – 57 VDC
PoE-Out input voltage range: 44 – 57 VDC
Power consumption: Idle 1.81 W / Max 5.5 W / PoE Max 245.5 W

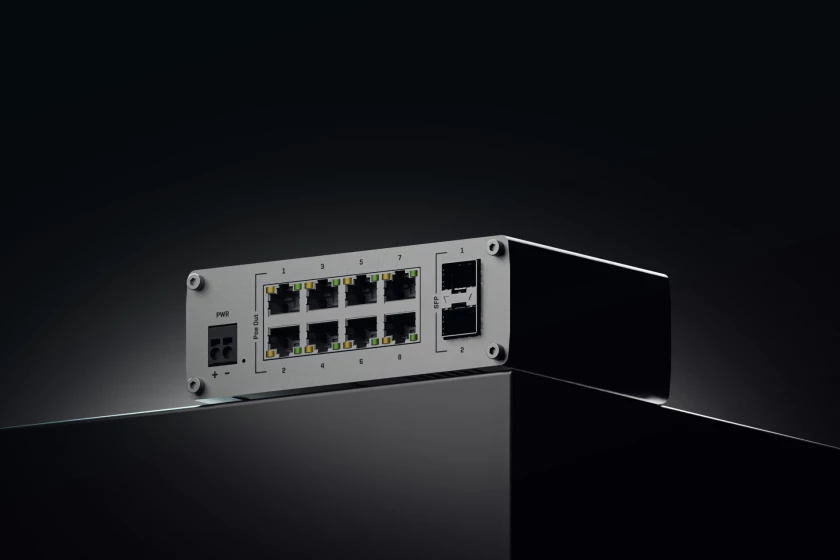

PHYSICAL INTERFACES
Ethernet: 8 x RJ45 ports, 10/100/1000 Mbps
Fibre: 2 x SFP ports
Status LEDs: 1 x Power LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power: 1 x 2-pin industrial DC power socket
Other: 1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material: Full aluminum housing
Dimensions (W x H x D): 132 x 44.2 x 95.1 mm
Weight: 517 g
Mounting options: Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
OPERATING ENVIRONMENT
Operating temperature: -40 °C to 75 °C
Operating humidity: 5% to 95% non-condensing
Ingress protection rating: IP30
REGULATORY & TYPE APPROVALS
Regulatory: CE, UKCA, CITC, ANRT, FCC, IC, CB
EMC EMISSIONS & IMMUNITY STANDARDS
EN 55032:2015 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2:2019 + A1:2021
EN 61000-3-3:2013 + A1:2019
ESD
EN 61000-4-2:2009
RADIATED IMMUNITY
EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
SURGE IMMUNITY (AC MAINS POWER PORT)
EN 61000-4-5:2014 + A1:2017
CS
EN 61000-4-6:2014
DIP
EN IEC 61000-4-11:2020
SAFETY STANDARDS
IEC 62368-1:2018
EN IEC 62368-1:2020 + A11:2020
