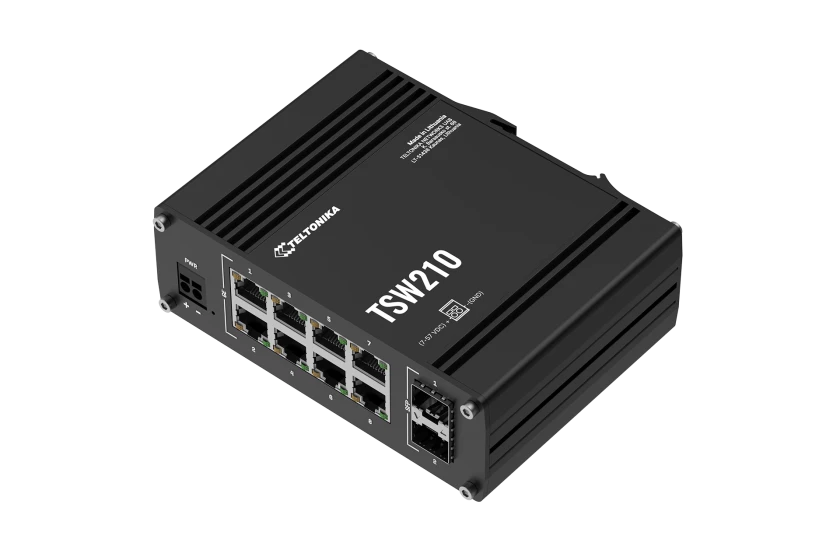

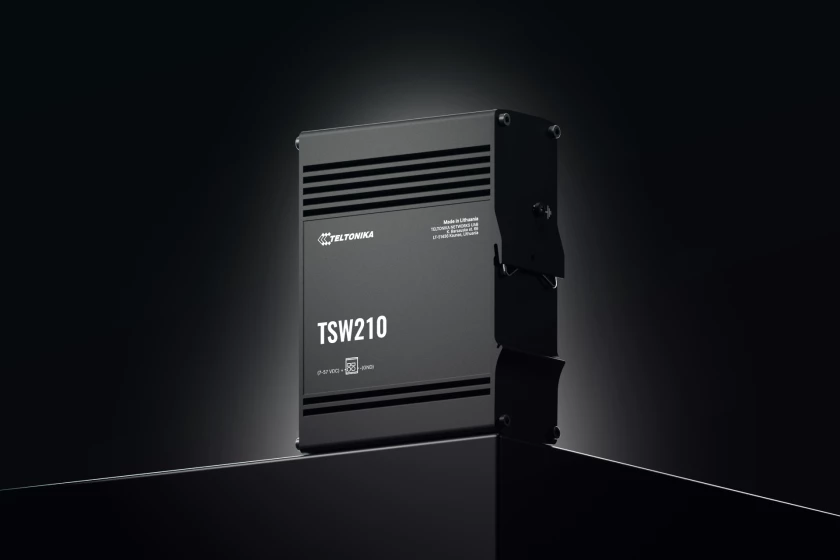

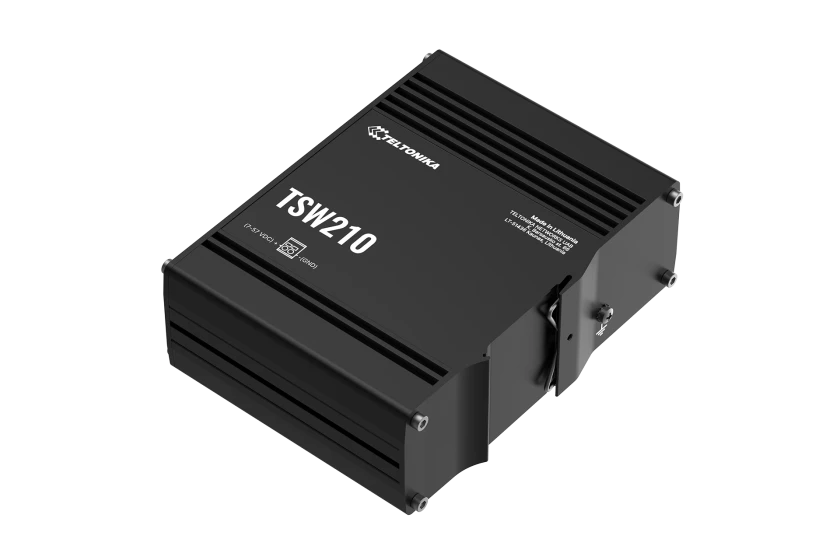

TSW210
TSW210 is an Ethernet switch that offers a great combination of Gigabit Ethernet and SFP. Eight Ethernet ports enable connecting multiple devices to the network quickly and easily without any further configuration. SFP allows including far apart devices while maintaining high-speed rates and reliability.
ETHERNET
8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
FIBRE
2 x SFP ports
IEEE 802.3 SERIES STANDARDS
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
INDUSTRIAL PROTOCOLS
Profinet
Profinet Class A conformance (available with optional order code)
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking)
20 Gbps
Packet Buffer
128 KB
MAC Address Table Size
2K entries
Jumbo Frame Support
9216 bytes
POWER
Connector
2-pin industrial DC power socket
Input Voltage Range
7 – 57 VDC
Power Consumption
Idle: ~1.03 W / Max: 3.71 W
PHYSICAL INTERFACES
Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
Fibre
2 x SFP ports
Status LEDs
1 x Power LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power
1 x 2-pin industrial DC power socket
Other
1 x Grounding screw
PHYSICAL SPECIFICATION
Casing Material
Full aluminum housing
Dimensions (W x H x D)
132 x 44.2 x 95.1 mm
Weight
500 g
Mounting Options
Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
OPERATING ENVIRONMENT
Operating Temperature
-40 °C to 75 °C
Operating Humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
REGULATORY & TYPE APPROVALS
Regulatory
CE, UKCA, CITC, ANRT, FCC, IC, RCM, CB, EAC, Kenya, NOM, UL/CSA, Japan, SDPPI (POSTEL)
EMC Emissions & Immunity
Standards
EN 55032:2015 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2:2019 + A1:2021
EN 61000-3-3:2013 + A1:2019
ESD
EN 61000-4-2:2009
EFT
EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
CS
EN 61000-4-6:2014
DIP
EN IEC 61000-4-11:2020
SAFETY
Standards
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
Safety (Hazardous Locations)
Standards
UL 62368-1
CAN/CSA C22.2 No. 62368-1-19
